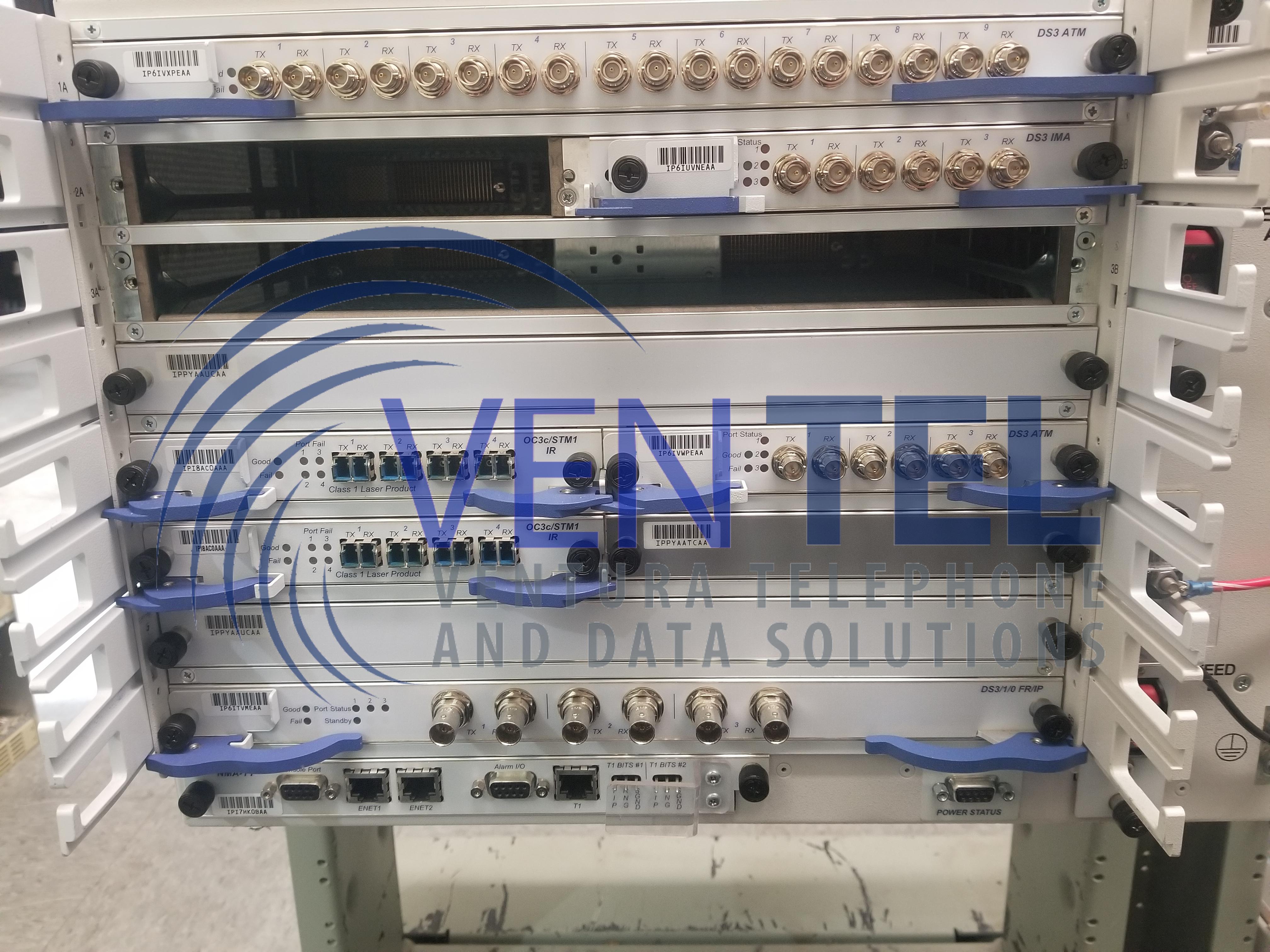

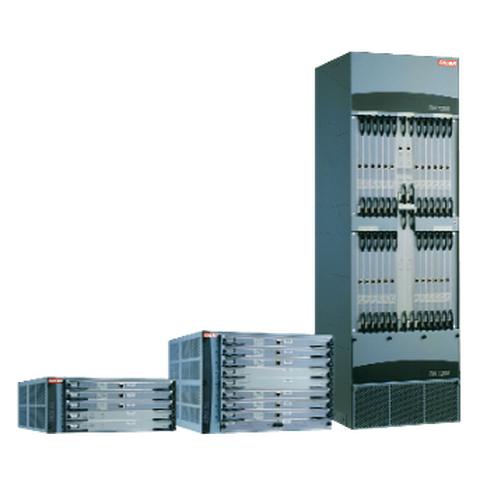

The DN 7100(TM) (Distributed Node 7100) multiservice edge switch platform, made by WaveSmith Networks, is a scaleable multiservice switching platform that combines ATM, Frame Relay, Time-Division Multiplexing/Circuit Emulation services (TDM/CES), and Multiprotocol Label Switching (IP/MPLS) services. The entire DN family (2100, 4100, and 7100) has an ultra-compact form factor while delivering telephony-grade reliability. The DN's unique WaveForm(TM) architecture supports any mix of multiservice edge and core networking technologies, enabling a migration that leverages existing infrastructure without a forklift upgrade. The DN increases today's service capacity at low cost and allows carriers to cap their legacy investment without disrupting services or overhauling the network. The DN 2100(TM) and DN 4100(TM) are optimized for remote edge and medium density edge applications while the DN 7100(TM) is geared towards Central Office (CO) switching.

Ciena acquired WaveSmith in April 2003, a month after WaveSmith announced a multiyear contract with SBC Services, Inc. to install the platform across 200 nationwide sites.

DN 7100 Data Sheet
    PartHECIDescription



    IPC8CC0 IPC8CC0AAA
    5.01

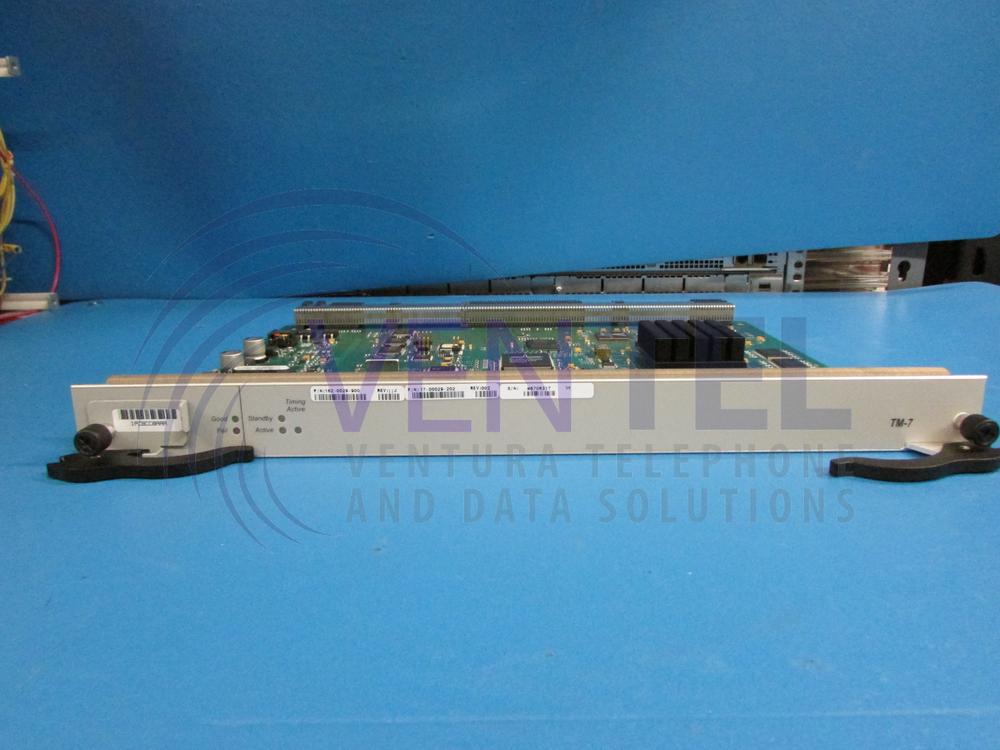

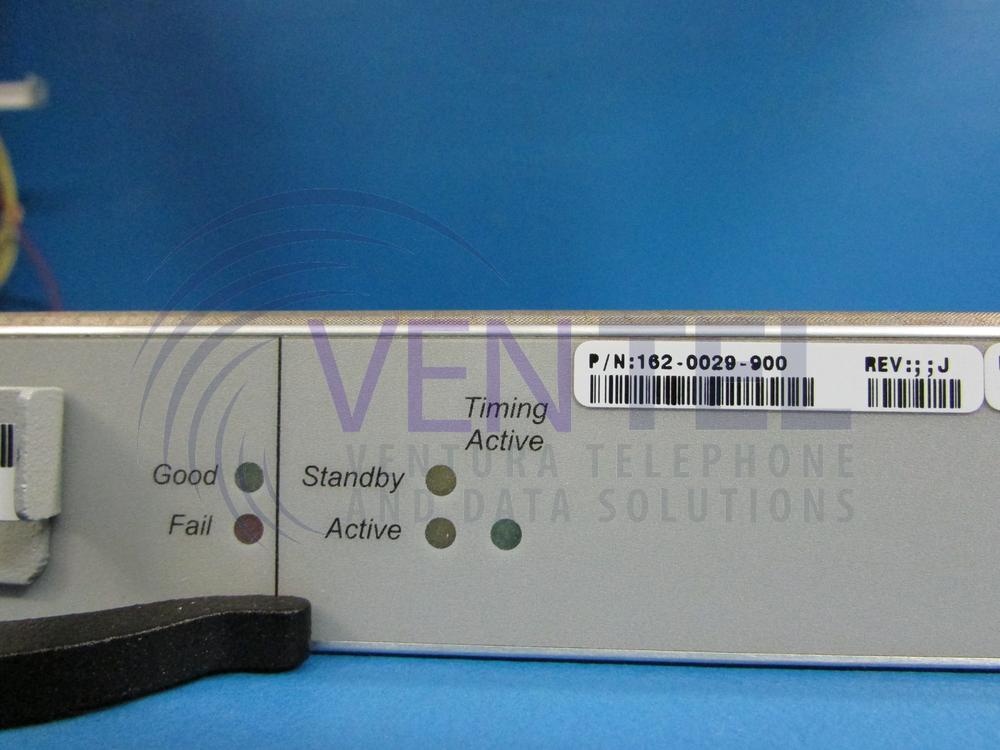

    TM 7 TIMING MODULE


    IPPYAAU IPPYAAUCAA
    5.01
    BLANK FACE COVER

    IPPQAD1 IPPQAD1RAA
    5.01
    BLANK FILLER PANEL

    IPPYAA5 IPPYAA5CAA
    5.01
    BLANK FILLER PANEL


    IPPYAAT IPPYAATCAA
    5.01
    BLANK PANEL


    IPPYAAP IPPYAAPCAA
    5.01
    BLANK STM PANEL

    IPPYAAR IPPYAARCAA
    5.01
    BLANK STM PANEL

    IPMYABF IPMYABFGAA
    5.01
    DC POWER FILTER

    IPPQAG1 IPPQAG1RAA
    5.01
    DC POWER FILTER

    IPC8AA0 IPC8AA0AAA
    5.01
    FAB TIMING MODULE


    IPMYABG IPMYABGGAA
    5.01
    FAN POWER MODULE

    IPPQAG2 IPPQAG2RAA
    5.01
    FAN POWER MODULE


    IPI8CL0 IPI8CL0AAA
    5.01
    MANAGEMENT ADAPTER E1



    IPI7HK0 IPI7HK0BAA
    5.01
    NODE MANAGEMENT ADAPTER T1

    IPC6FM0 IPC6FM0CAA
    5.01
    STACK TIMING MODULE

    IPC6FK0 IPC6FK0CAA
    5.01
    STACK TIMING MODULE

    IPC6FL0 IPC6FL0CAA
    5.01
    STACK TIMING MODULE

    IPC8BB0 IPC8BB0AAA
    5.01
    STAK TIMING MODULE
