The Alcatel-Lucent DEXCS Digital Cross-Connect (DAX) is a fully-featured 3/1/0 SONET cross-connect switch. The system provides scaleable growth to large-scale narrow-band cross-connects, and also provides the unique capability to bridge between the traditional telephony network and the cell based data networks (frame relay and ATM). The DEXCS can be configured as a Narrowband 1/0 (DS1 input, DS0 cross-connect), Wideband 3/1 (DEX-ECS1/3 DS1 & DS3 input, DS1 cross-connect) or Broadband 3/3/fiber (DS3 & fiber optic input, DS3 cross-connect). The Narrowband can be configured as a CS1S (CS1 small) with 84 DS1's, CS1 (medium) with 336 DS1's, CS1L (CS1 large) with 1544 DS1's and a CS1VL (CS1 very large) with 5376 DS1's.
The DEXCS switch family, from the Alcatel/DSC (Digital Switch Corporation) merger in 1999, has since been acquired by Telmar Network Technology (now iQor).
| Part | HECI | Description | |
|---|---|---|---|
 |

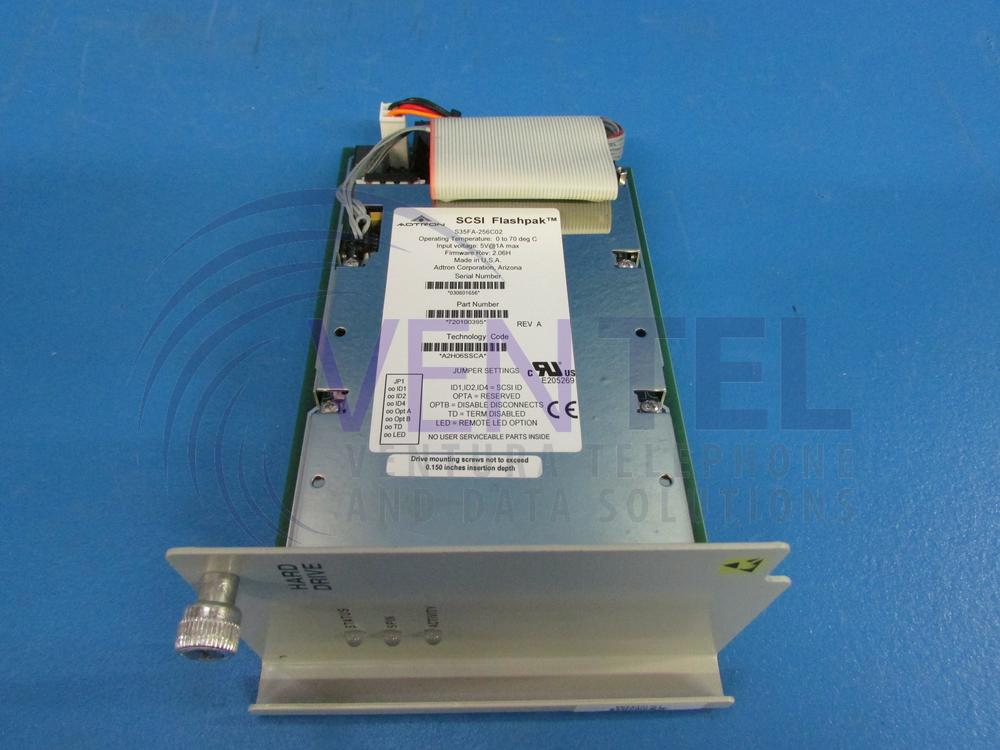

300-1508-905-REV-A | T3C2PV0 T3C2PV0GAA | BACKUP MEMORY CARD W/ 640MB MODRated 5/5 based on 1 review |
 |

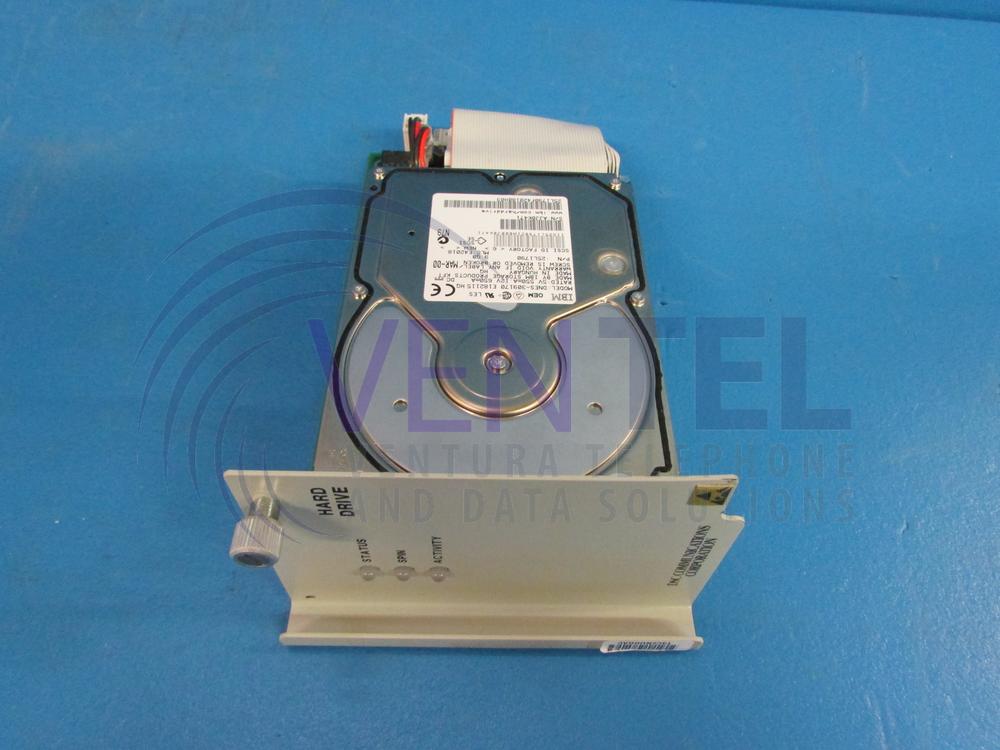

300-1508-901-REV-A | T3CPK0E T3CPK0EDAA | BACKUP MEMORY CARD W/ HARD DISK DRIVERated 5/5 based on 1 review |
 |

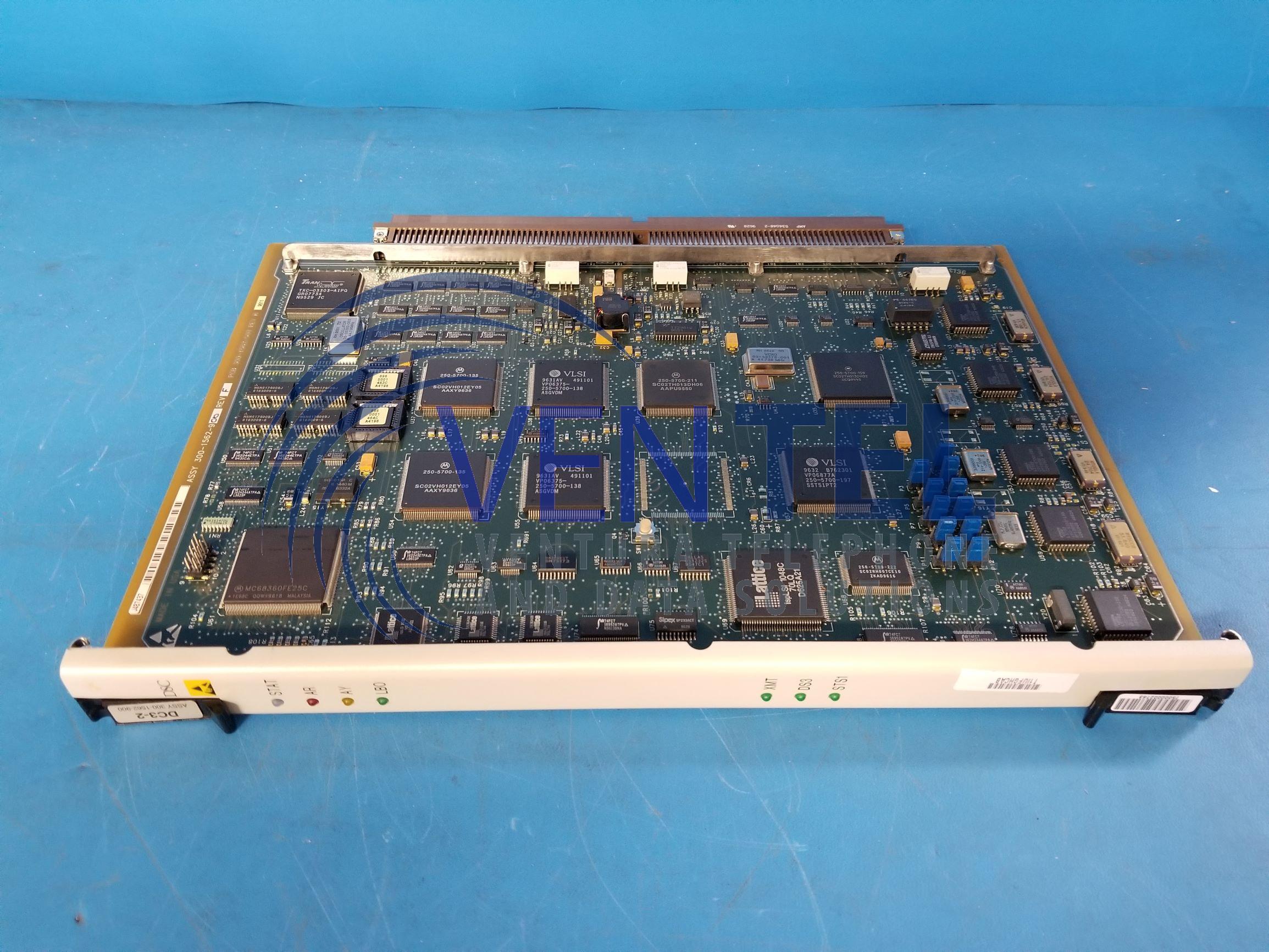

300-1562-902-REV-A | T1IUFGJ T1IUFGJCAA | DC3 3/2 DIGITAL INTERFACE CP, REPLACES 300 1562 900Rated 5/5 based on 1 review |
 |
300-0706-901-REV-G | T1DAZ99 T1DAZ993AC | DEX ECS1/3 CONTROLLER MEMORY CARDRated 5/5 based on 1 review |
 |
300-0434-905-REV-A 300-0434-905 | T1PQAE6 T1PQAE61AA | DIGITAL MATRIX CARDRated 5/5 based on 1 review |
 |
300-0437-902-REV-T | T1D1L0B T1D1L0B3AA | DIGITAL MTX CONTROLLERRated 5/5 based on 1 review |
 |
300-0437-902-REV-N | T1D1L0S T1D1L0S3AA | DIGITAL MTX CONTROLLERRated 5/5 based on 1 review |
 |
300-0659-901-REV-A | T1D3BP0 T1D3BP01AA | DS3 INTERFACERated 5/5 based on 1 review |
 |
300-0718-902-REV-D | T1D3ZNV T1D3ZNV1AA | DS3 INTERFACERated 5/5 based on 1 review |
 |
300-0404-905-REV-A | T1PQADH T1PQADH1AA | DS3 UNIT CONTROLLERRated 5/5 based on 1 review |
 |
300-1799-901-REV-B | T3D1CNU T3D1CNUDAA | HD T3 INTERFACE CARDRated 5/5 based on 1 review |
 |
300-1799-900-REV-B 300-1799-900 | T3D1CMU T3D1CMUDAA | HD T3 INTERFACE CARDRated 5/5 based on 1 review |
 |
300-1799-901-REV-A 300-1893-901 | T3D1CN0 T3D1CN0DAA | HD T3 INTERFACE CARDRated 5/5 based on 1 review |
 |
300-1799-900-REV-A 300-1799-900 | T3D1CM0 T3D1CM0DAA | HD T3 INTERFACE CARDRated 5/5 based on 1 review |
 |
300-0669-903-REV-A | T1D4DGE T1D4DGEAAA | NETWORK INTERFACERated 5/5 based on 1 review |
 |
300-0308-900 | T1DAX21 T1DAX213AA | SIO ADMIN CS1/S/L I/F CARDRated 5/5 based on 1 review |
 |
300-0414-904 | T1DAX43 T1DAX433AA | SYNC CARDRated 5/5 based on 1 review |
 |
300-0313-900 | T1DAX13 T1DAX133AA | SYNC CD ST3MRated 5/5 based on 1 review |
 |
300-0414-901 | T1DAX42 T1DAX423AA | SYNC COMP CLOCK CARDRated 5/5 based on 1 review |
 |
300-0416-900 | T1DAX41 T1DAX413AA | UNIT MANAGERRated 5/5 based on 1 review |
 |
300-0416-900-REV-N | T1D4AAA T1D4AAAAAA | UNIT MANAGERRated 5/5 based on 1 review |
 |
300-0416-901-REV-A | T1DAX66 T1DAX663AA | UNIT MANAGER .5MRated 5/5 based on 1 review |
 |
300-0416-901-REV-P | T1D4ABA T1D4ABAAAB | UNIT MANAGER .5MRated 5/5 based on 1 review |
 |
300-1628-901-REV-B | T1C1PRV T1C1PRVAAA | UNIT MANAGER CIRCUIT PACKRated 5/5 based on 1 review |
 |
500-0122-004-REV-K 500-0122-004 | T1BYAEE T1BYAEEJAA | 1 8^ MTX RE FRated 5/5 based on 1 review |
 |
500-0122-004-REV-L 500-0122-004 | T1BYAEE T1BYAEEJAB | 1 8^ MTX RE FRated 5/5 based on 1 review |
 |
259-4002-241-REV-A 259-4002-241 | T1D3TS0 T1D3TS01AA | MULTI JCT UNIT CARDRated 5/5 based on 1 review |
 |
500-0507-017-REV-E 500-0507-017 | T1B4XF0 T1B4XF0BRC | /L 11^8 RACK ASSEMBLYRated 5/5 based on 1 review |
 |
500-0507-008-REV-E 500-0507-008 | T1B4UF0 T1B4UF0BRC | /L 8^8 RACK ASSEMBLYRated 5/5 based on 1 review |
 |
300-0304-900 | T1DAX16 T1DAX163AA | 084 DGL MTX CARDRated 5/5 based on 1 review |
 |
500-0176-007-REV-N 500-0176-007 | T1BYAEY T1BYAEYJAB | 11 FOOT, 6 INCH 4 UNITRated 5/5 based on 1 review |
 |
500-0176-007-REV-M 500-0176-007 | T1BYAEY T1BYAEYJAA | 11 FOOT, 6 INCH 4 UNITRated 5/5 based on 1 review |
 |
500-0176-003-REV-M 500-0176-003 | T1BYAEU T1BYAEUJAB | 11 FOOT, 6 INCH 6 UNITRated 5/5 based on 1 review |
 |
500-0176-003-REV-L 500-0176-003 | T1BYAEU T1BYAEUJAA | 11 FOOT, 6 INCH 6 UNITRated 5/5 based on 1 review |
 |
500-0122-007-REV-L 500-0122-007 | T1BYAEH T1BYAEHJAB | 11 FOOT, 6 INCH MATRIX RRated 5/5 based on 1 review |
 |
500-0122-007-REV-K 500-0122-007 | T1BYAEH T1BYAEHJAA | 11 FOOT, 6 INCH MATRIX RRated 5/5 based on 1 review |
 |
500-0585-010-REV-B 500-0585-010 | T3M1ZL0 T3M1ZL0BRA | 11 FOOT, 6 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0585-010-REV-A 500-0585-010 | T3M1TL0 T3M1TL0BRA | 11 FOOT, 6 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0585-009-REV-B 500-0585-009 | T3M1ZK0 T3M1ZK0BRA | 11 FOOT, 6 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0585-009-REV-A 500-0585-009 | T3M1TK0 T3M1TK0BRA | 11 FOOT, 6 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0585-012-REV-B 500-0585-012 | T3M11L0 T3M11L0BRA | 11 FOOT, 8 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0585-012-REV-A 500-0585-012 | T3M1UL0 T3M1UL0BRA | 11 FOOT, 8 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0585-011-REV-B 500-0585-011 | T3M11K0 T3M11K0BRA | 11 FOOT, 8 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0585-011-REV-A 500-0585-011 | T3M1UK0 T3M1UK0BRA | 11 FOOT, 8 INCH SHELF ASSEMBLYRated 5/5 based on 1 review |
 |
500-0401-003-REV-A 500-0401-003 | T1B44J0 T1B44J0BRA | 11.5 ADMIN ASSEMBLYRated 5/5 based on 1 review |
 |
500-0401-003-REV-B 500-0401-003 | T1B44J0 T1B44J0BRB | 11.5 ADMIN ASSEMBLYRated 5/5 based on 1 review |
 |
500-0401-007-REV-A 500-0401-007 | T1B44H0 T1B44H0BRA | 11.5^ RACK ASSEMBLYRated 5/5 based on 1 review |
 |
500-0401-015-REV-A 500-0401-015 | T1B44HC T1B44HCBRA | 11.5^ RACK ASSEMBLYRated 5/5 based on 1 review |
 |
500-0401-007-REV-B 500-0401-007 | T1B44H0 T1B44H0BRB | 11.5^ RACK ASSEMBLYRated 5/5 based on 1 review |
 |
500-0401-010-REV-A 500-0401-010 | T1B47HB T1B47HBBRA | 11.8^ RACK ASSEMBLYRated 5/5 based on 1 review |
