The Tellabs 7100 OTS is a metro, dense wavelength division multiplexing(DWDM) system based on a parallel architecture that provides scalable, non-service affecting growth to 88 protected wavelengths without network re-engineering. The Tellabs 7100N OTS is a full-featured system providing eight protected wavelength for niche applications within a Tellabs 7100 OTS network.These systems support ITU-T Recommendation G.709 Optical Transport Network (OTN)-based transport, enabling transparent high-capacity services. Services such as Carrier Ethernet, video, Storage Area Network, SONET, and SDH are carried on a shared infrastructure, scaling capacity as needed.
| Part | HECI | Description | |
|---|---|---|---|
 |
82.71328U-REV-C SMTM-U | WMOMA5V WMOMA5VCAA | 10 CG SUBRATE ADM MUX |
 |
82.71328U-REV-A SMTM-U 101-000516-11 8000-000280-01 | WMOMA4K WMOMA4KCAA | 10 CG SUBRATE ADM MUX |
 |
82.71328U-REV-F SMTM-U | WMOMA59 WMOMA59UAA | 10 CG SUBRATE ADM MUX |
 |
82.88X0PLML-R5-REV-A | IPU3AVM IPU3AVMKAA | 10GBE LAN PRINT CARD |
 |
82.88X0PLML-R5-REV-E | IPU3AVM IPU3AVMKAE | 10GBE LAN PRINT CARD |
 |
0470-0009-1A HOA8030-6-AS-D-C-2 HOA8230-6-AS-A-C BVM19S0 | BVM1RS0 BVM1RS0ERA | 11017082 HARMONIC VIDEO OPTICAL AMPLIFIER 6X22 DBM OUTPUT 2RU MOUNTING |
 |
HOA8030-8-AS-D-C-2 HOA8030-8-AS 0470-0009-1A BVM1RS0ERA | 11017082 HARMONIC VIDEO OPTICAL AMPLIFIER 6X22 DBM OUTPUT 2RU MOUNTING | |
 |
810263DC-3 | DSTMTK4 DSTMTK41AA | 263D DA STA TERMINATION UNIT |
 |
82.71423M-R5-REV-A | WOWUAUL WOWUAULFAA | 40G TRANSPONDER MUX MODULE |
 |
82.71423M-R5-REV-D | WOWUA7G WOWUA7GFAA | 40G TRANSPONDER MUX MODULE |
 |
824312A | DSCPT42 DSCPT421AA | 4312A LP INTERFACE MODULE |
 |
812510-REV-C | ESCEFKU ESCEFKUAAA | 48MS ECHO CANCR MODULE |
 |
815330 | T1DAM00 T1DAM001AA | 530 POWER CONVERTER MODULE |
 |
82.71328U-REV-D | WMOMA55 WMOMA55CAA | 7100N 10 CG SUBRATE ADM MUX |
 |
81.71M-FGTMCFP-R5 | WOWUBDM WOWUBDMYAA | 7100N TRANSPONDER PRNCD |
 |
81.71323-SR-REV-A | SOOMAA6 SOOMAA6DAA | 7120 NGX 10G TUNABLE TRANSPONDER |
 |
82.71228-IR-R5-REV-B OADM88-IR | WMOMA56 WMOMA56CAA | 88 CHANNEL OADM IR |
 |
81.88X0-ULC-1-REV-N | COUIAKE COUIAKEFAA | 8860 / 88X0 ULC |
 |
8165101-REV-A 540-4224-03 F540-4224 540-4224-04 ANC2LPMCAA | IPCPTY0 IPCPTY0CAA | ADMINISTRATIVE PROCESSOR |
 |

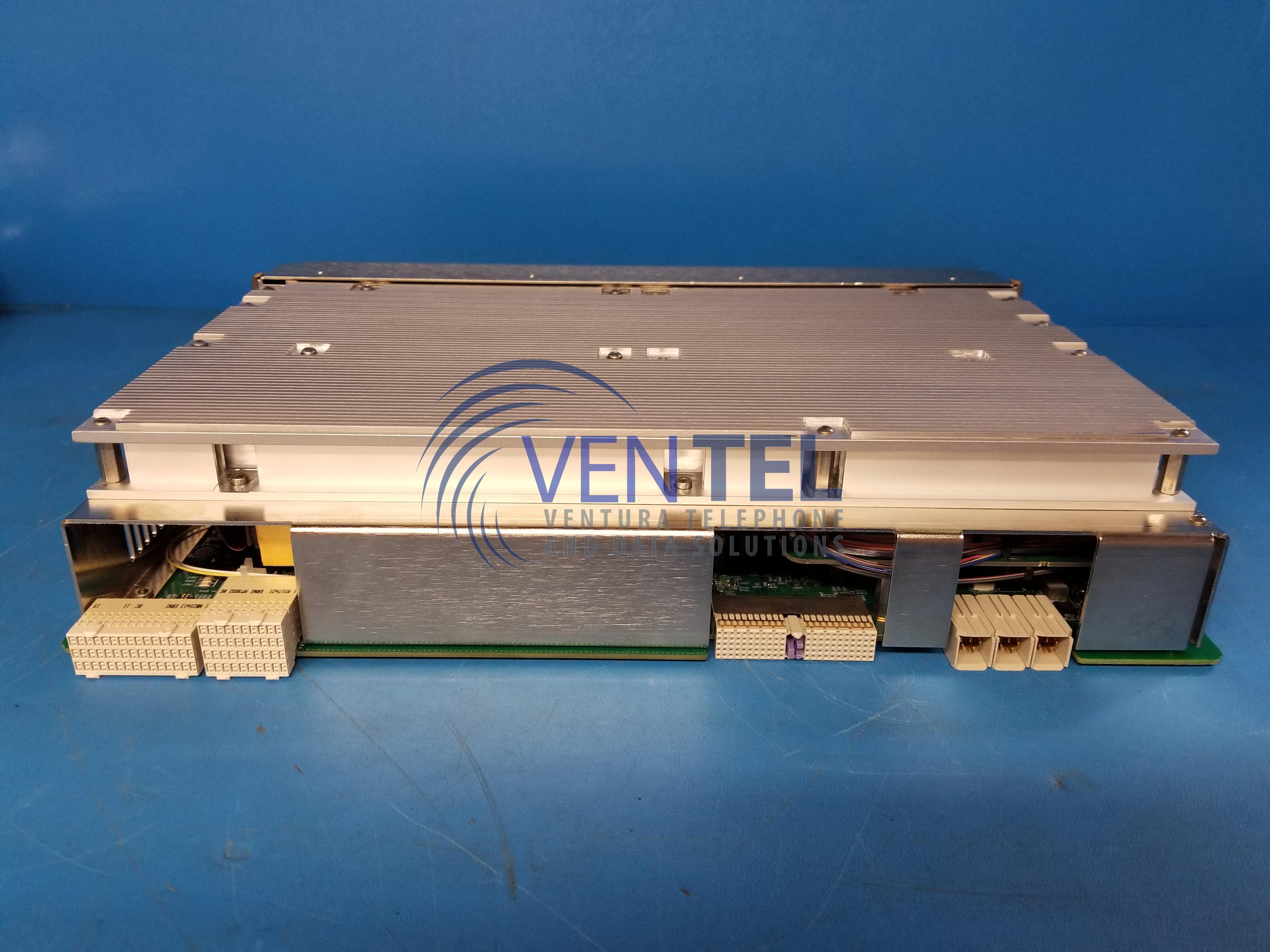

81.717271-REV-C | WOOMAC3 WOOMAC3MAC | COLORLESS CORE MODULE IR |
 |

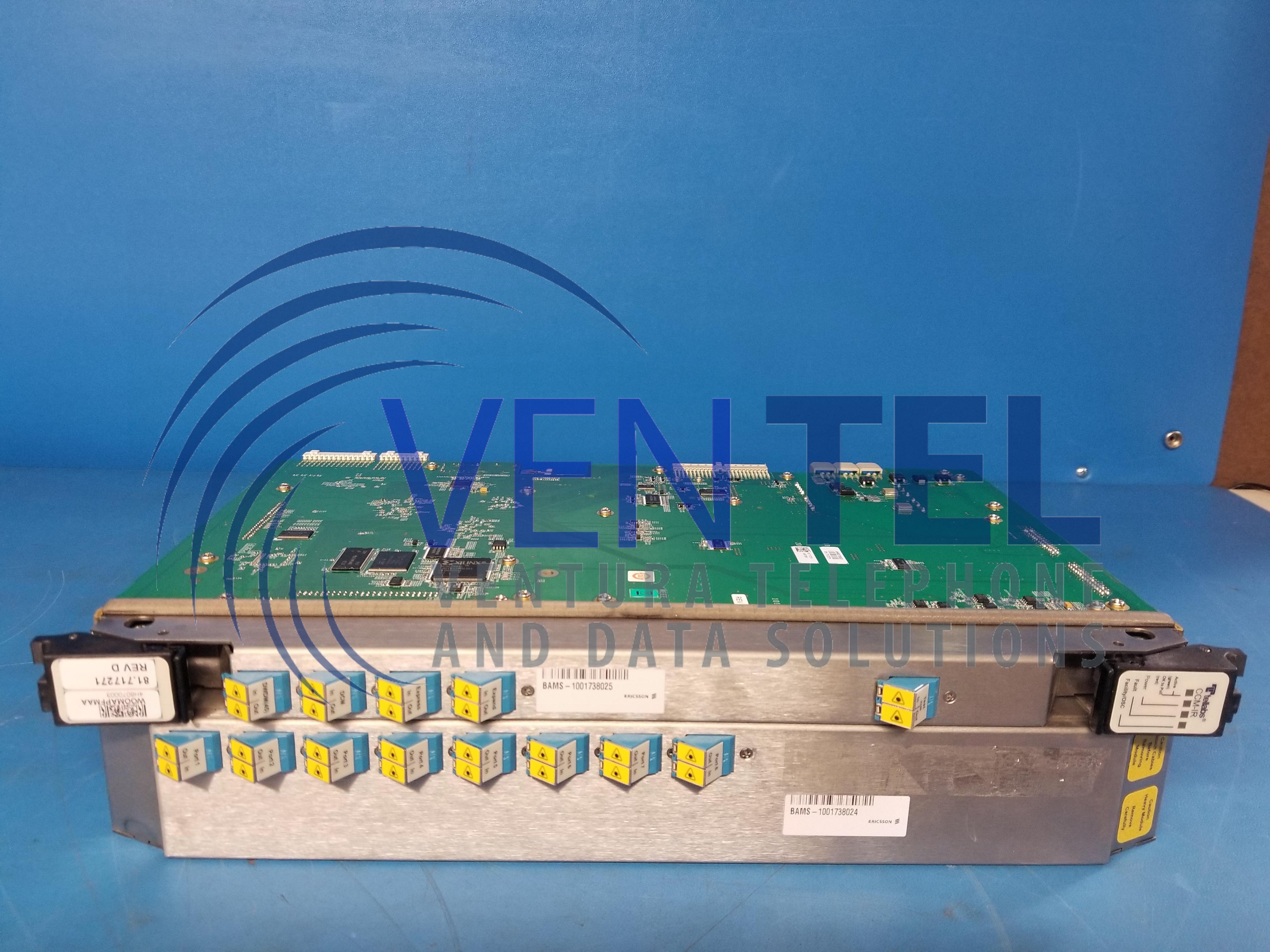

81.717271-REV-D | WOOMAC3 WOOMAC3MAD | COLORLESS CORE MODULE IR (=181216 WOOMAPFMAA DXB) |
 |
81.717273-REV-A W00MAC4MAA | WOOMAC4 WOOMAC4MAA | COLORLESS CORE MODULE LR |
 |
81.717273-REV-D WOOMAC4MAD | WOOMAPG WOOMAPGMAA | COLORLESS CORE MODULE LR |
 |
815502ER5-REV-B | T3C4HKE T3C4HKECAA | DATA STORAGE MODULE |
 |
815516-REV-Q | T3PQANU T3PQANUBAA | DS1/T TSI |
 |
815509-REV-AF | T3PQAMA T3PQAMABAF | ESM CARD |
 |
81.71M-HGTM-R5-REV-C 1600-000084-01 8000-000128-01 8000-000128-02 | WOWUBAK WOWUBAKFAA | HGTM (HIERARCHICAL GENERATIVE TOPOGRAPHIC MAPPING) CARD |
 |
815545T-REV-D | SN2PWW0 SN2PWW0HAD | MAPPING MODULE |
 |

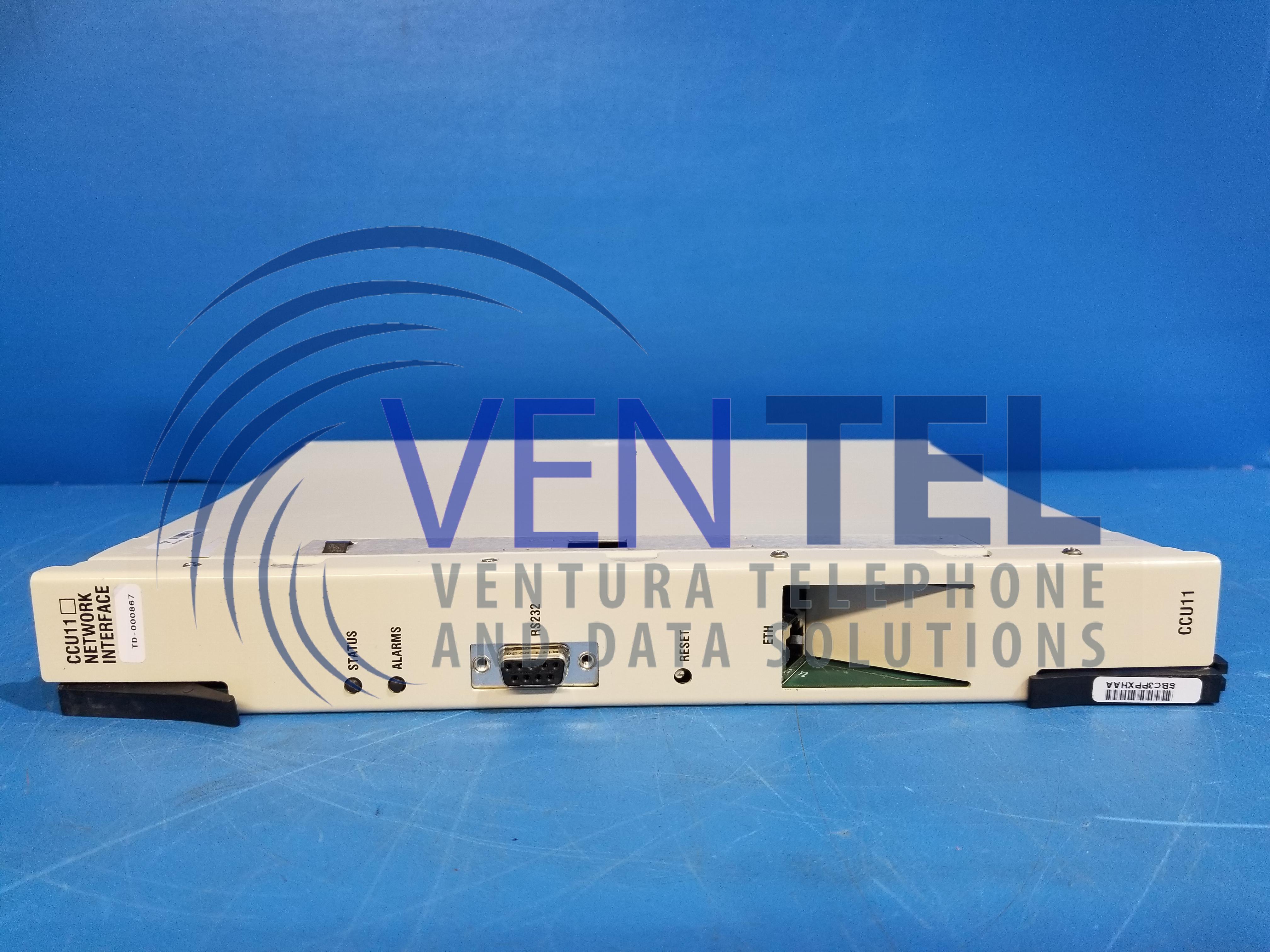

4105059A CCU11A | SBC3PPX SBC3PPXHAA | MX CONTR UN |
 |

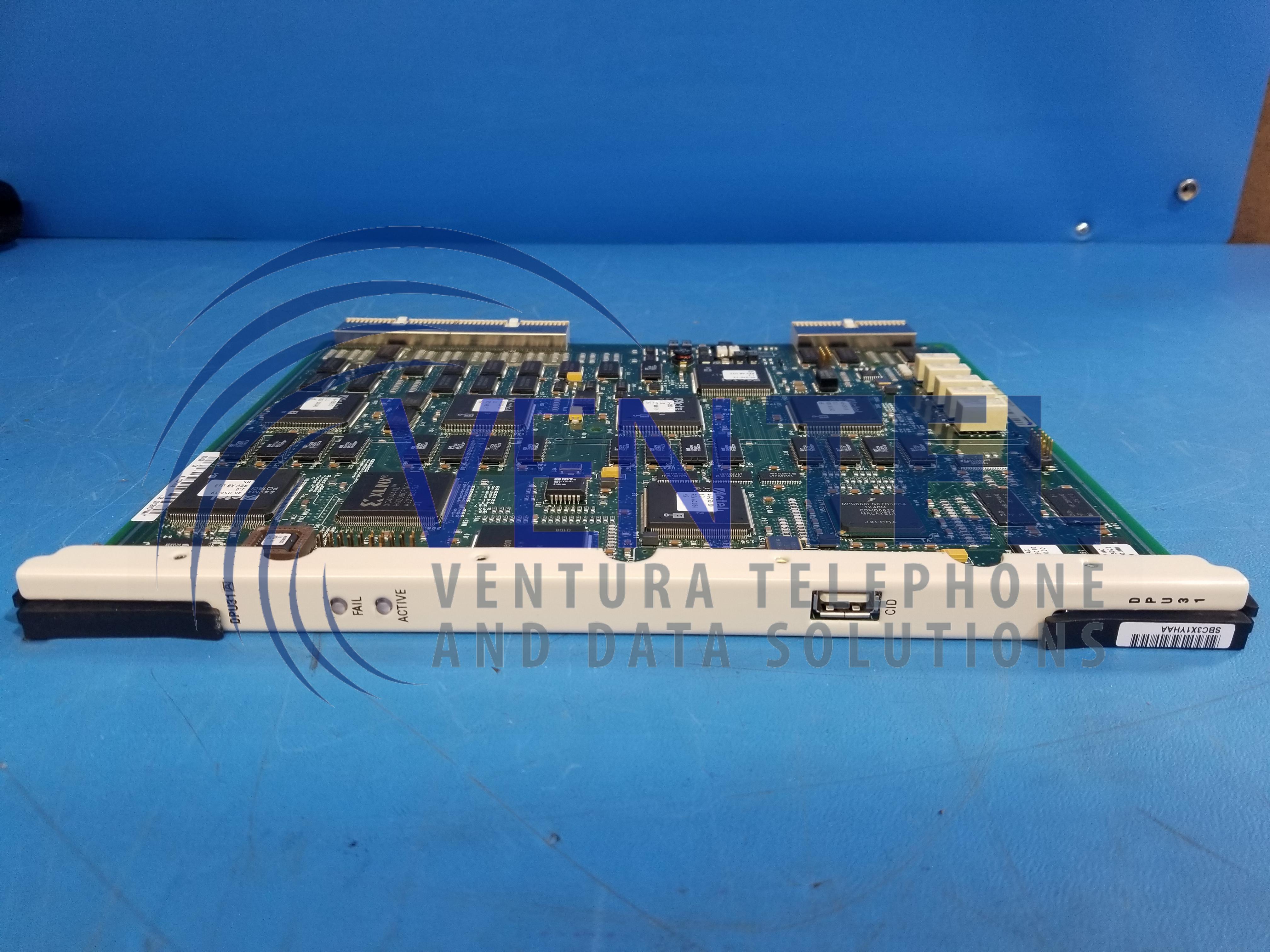

41050321A DPU31A | SBC3X1Y SBC3X1YHAA | MX DISTN PROC UNIT |
 |
81.71M-OSM20-R6-REV-C | WOCUA5G WOCUA5GSAA | NANO OSM 20 OTN 20G SWITCHING MODULE |
 |
81.71M-OADM8IR-R5-REV-B OADM88-8D-IR | WOOMAXR WOOMAXRMAA | OADM OPTICAL ADD/DROP MULTIPLEXER |
 |
815543B-FC | SNC160P SNC160P8AA | OC12 OPTICAL PORT LR |
 |
815543B-SC | SNC160E SNC160E8AA | OC12 OPTICAL PORT LR |
 |
815543B-FC-REV-H | SNP139H SNP139HFAA | OC12 OPTICAL PORT LR |
 |

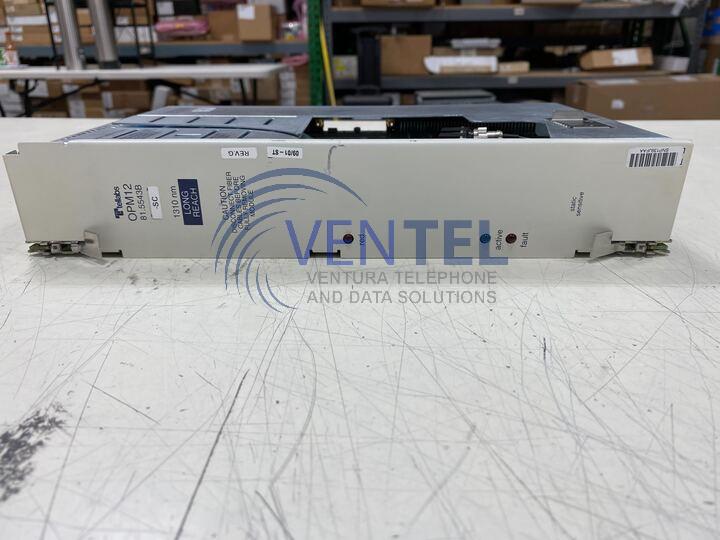

815543B-SC-REV-G | SNP139J SNP139JFAA | OC12 OPTICAL PORT LR |
 |
815543B-ST | SNC160F SNC160F8AA | OC12 OPTICAL PORT LR |
 |

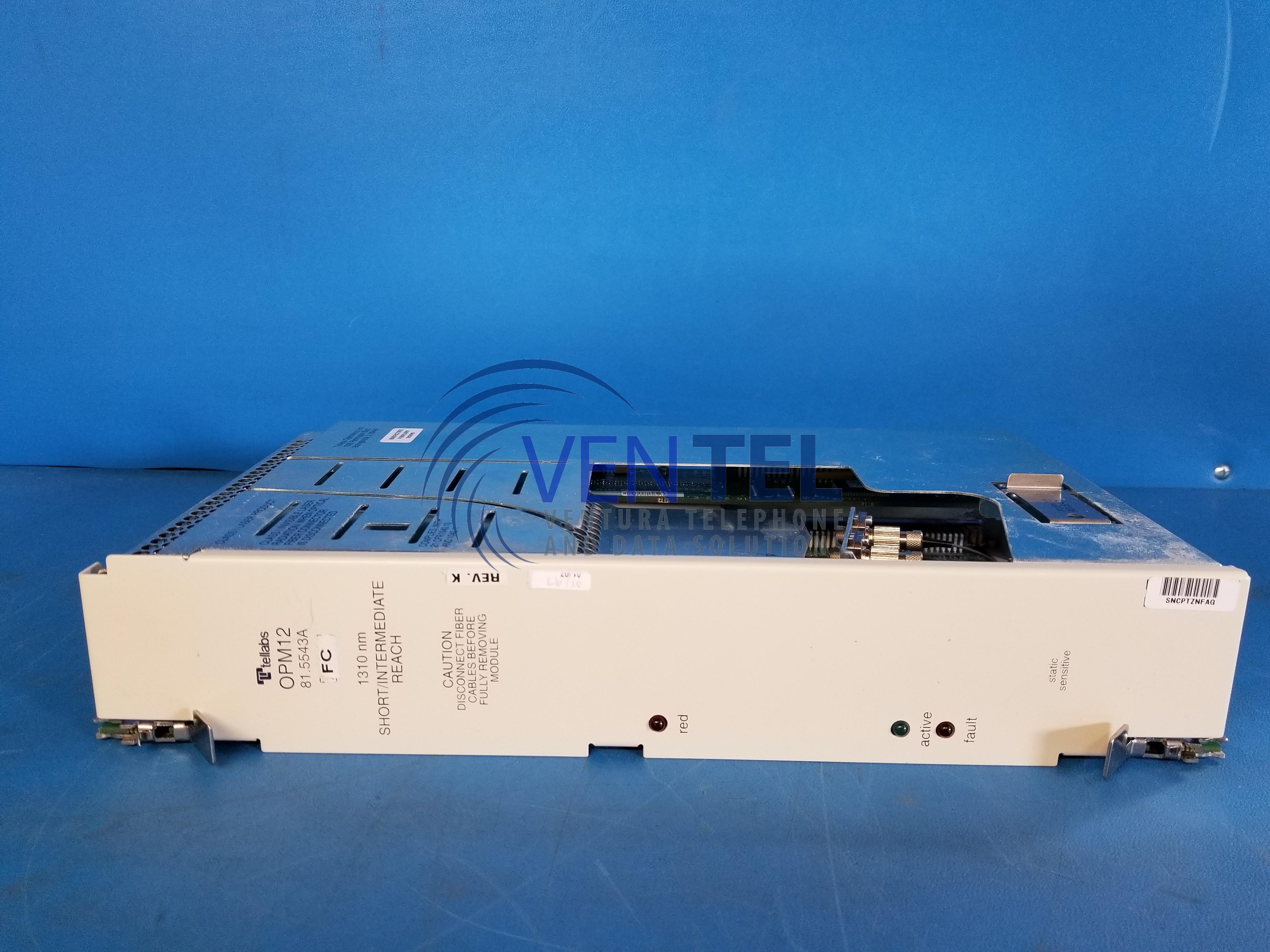

81.5543A-FC-REV-F | SNCPTZN SNCPTZNFAA | OC12 OPTICAL PORT SR |
 |
815543A-FC | SNC1Z0T SNC1Z0T8AA | OC12 OPTICAL PORT SR |
 |

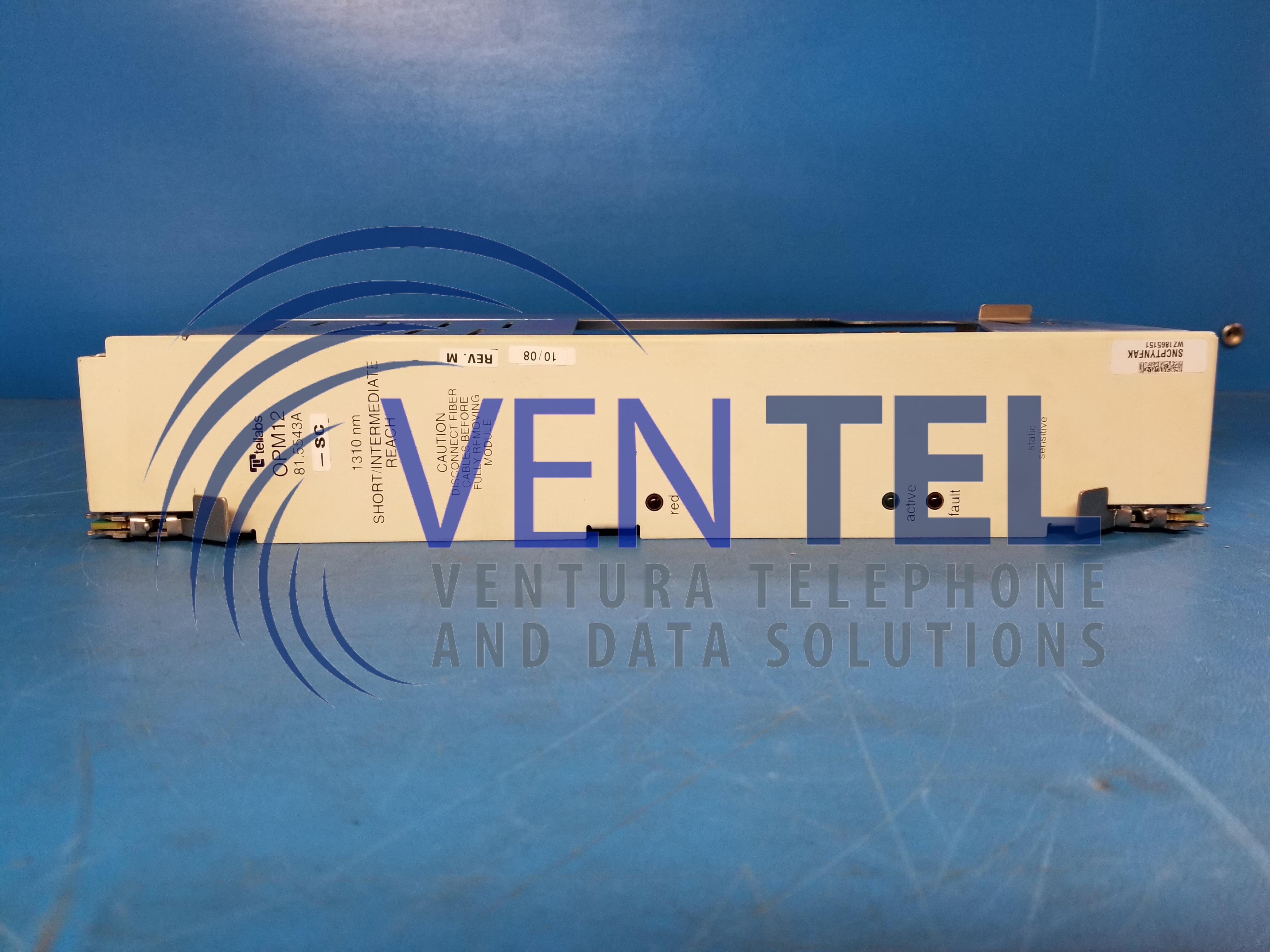

81.5543A-SC-REV-E | SNCPTYN SNCPTYNFAA | OC12 OPTICAL PORT SR |
 |
81.71228-LR-R5 OADM88-LR | WOOMAG8 WOOMAG8MAA | OPTICAL ADM |
 |
8165306E-1310-SC-REV-C | IPOLBCV IPOLBCVAAA | OPTICAL LINE INTERFACE |
 |
81.71328O-M-R5-REV-D 81.713280-M-R5-REV-D | WMUIAK7 WMUIAK7NAA | OPTICAL TRANSLATOR MUX PRNCD |
 |
81.71328O-M-R5-REV-A 81.713280-M-R5-REV-A | WMUIAKA WMUIAKAGAA | OPTICAL TRANSLATOR MUX PRNCD |
 |
825534A-REV-A | T3PUFKB T3PUFKBEAA | POWER SUPPLY MODULE |
 |
825534A-REV-D | T3PUFKD T3PUFKDEAA | POWER SUPPLY MODULE |
 |
82.71150A-R5 | WMUCA6N WMUCA6NDAA | SONET/SDH FABRIC MODULE |
 |
825520FE-REV-A | T3PQANA T3PQANABAA | STS 1E PM |
 |
81.88X0-SCC-2-R5-REV-G 180.0736 | IPUCA53 IPUCA53JAA | SWITCH AND CONTROL CARD |
 |

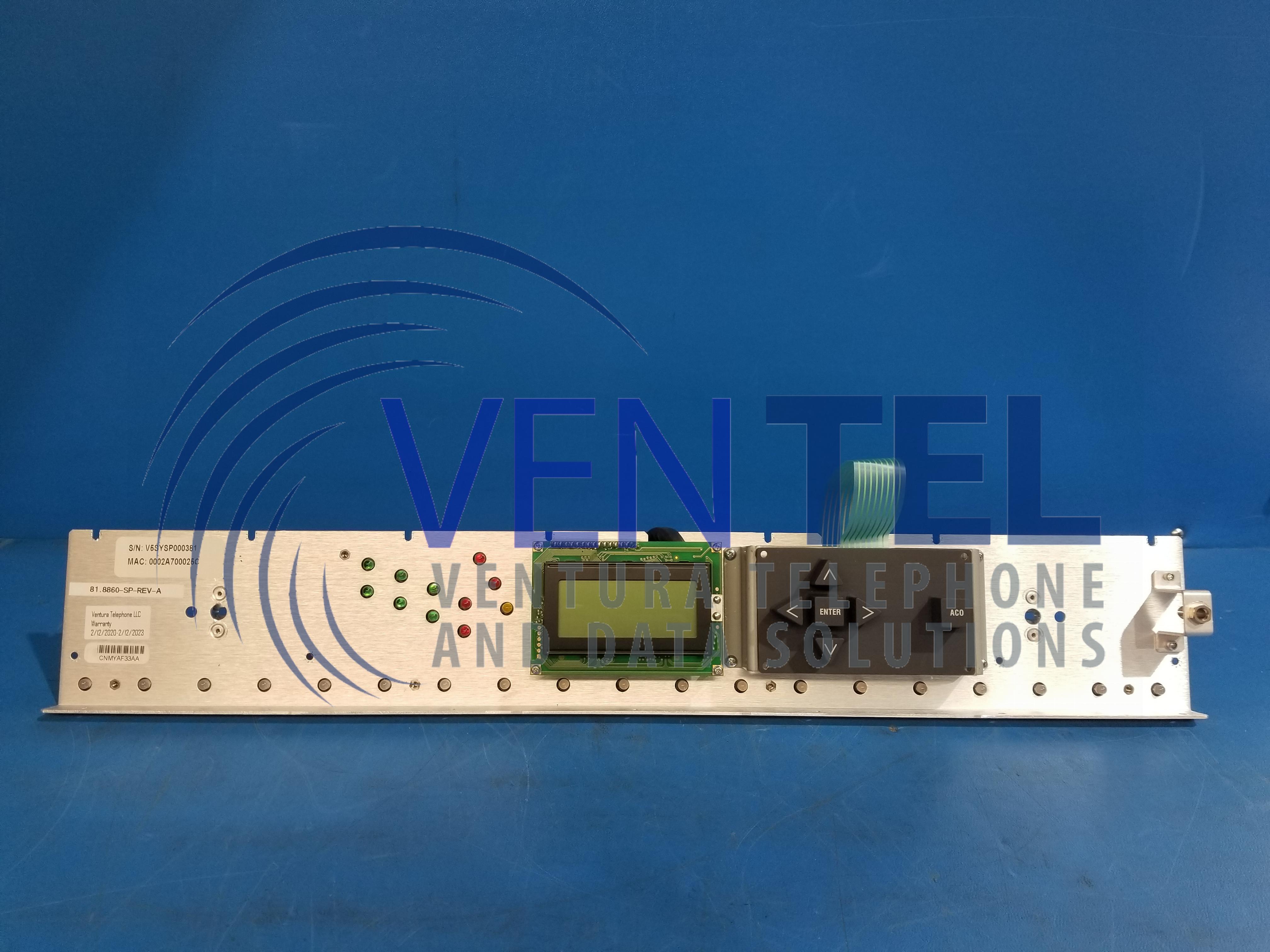

10-0352-000-REV-A 81.8860-SP-REV-A | CNMYAF3 CNMYAF33AA | SYS PANEL SPARE |
