The Tellabs 7100 OTS is a metro, dense wavelength division multiplexing(DWDM) system based on a parallel architecture that provides scalable, non-service affecting growth to 88 protected wavelengths without network re-engineering. The Tellabs 7100N OTS is a full-featured system providing eight protected wavelength for niche applications within a Tellabs 7100 OTS network.These systems support ITU-T Recommendation G.709 Optical Transport Network (OTN)-based transport, enabling transparent high-capacity services. Services such as Carrier Ethernet, video, Storage Area Network, SONET, and SDH are carried on a shared infrastructure, scaling capacity as needed.
Tellabs 7100 7100N Manual Optical Transport System Tellabs 7100 mTera Provisioning Guide
| Part | HECI | Description | |
|---|---|---|---|
|
82.71423M-R5-REV-D |
WOWUA7G WOWUA7GFAA | 40G TRANSPONDER MUX MODULE |
|
82.71423M-R5-REV-A |
WOWUAUL WOWUAULFAA | 40G TRANSPONDER MUX MODULE |
|
81.71M-HGTMS-R6 |
WOOMA1W WOOMA1W1AA | CORIANT TRANSPONDER CARD 100G SINGLE SLOT |
|
81.71M-OSM20-R6-REV-C |
WOCUA5G WOCUA5GSAA | NANO OSM 20 OTN 20G SWITCHING MODULE |
|
81.71328O-M-R5-REV-A 81.713280-M-R5-REV-A |
WMUIAKA WMUIAKAGAA | OPTICAL TRANSLATOR MUX PRNCD |
|

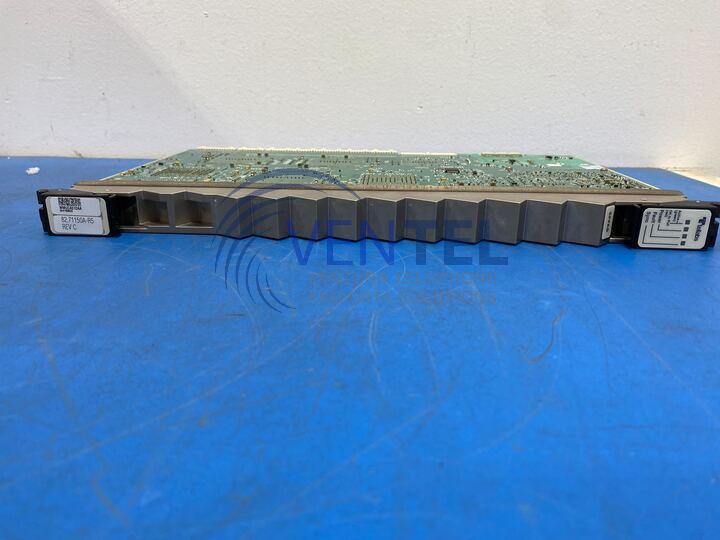

82.71150A-R5 |
WMUCA6N WMUCA6NDAA | SONET/SDH FABRIC MODULE |
|
81.71323A-REV-E |
WMOPBZ2 WMOPBZ2BAA | TELLABS 7100 10G TUNABLE TRANSPONDER MODULE |
|
81.71323-REV-E TGTM-E |
WMOPBZ1 WMOPBZ1BAA | TELLABS 7100 10GB TRANSPONDER MODULE |
|
81.71323NX-REV-A |
WMOPBFK WMOPBFKBAA | TELLABS 7100 10GB TUNABLE TRANSPONDER |
|
81.71326-5T-SR-REV-C |
WMOPBA2 WMOPBA2BAB | TELLABS 7100 2.5G SR TRANSPONDER |
|
81.71112A-REV-B |
WMEFMNL WMEFMNLEAA | TELLABS 7100 DUAL OPTICAL SUPERVISORY |
|
81.71040-REV-A |
WMPQAUJ WMPQAUJEAA | TELLABS 7100 FAN TRAY |
|
|
10 KM DCM | |
|
81.71T-C100LR4-R6 TRC5E21FNF-LL300 |
WOTRCUC WOTRCUCAAA | 100G LR4 CFP CLIENT USS NANO MODULE |
|
81.71220-19-REV-B |
WMMP310 WMMP310BRA | 100G MAIN SHELF 19 INCH |
|

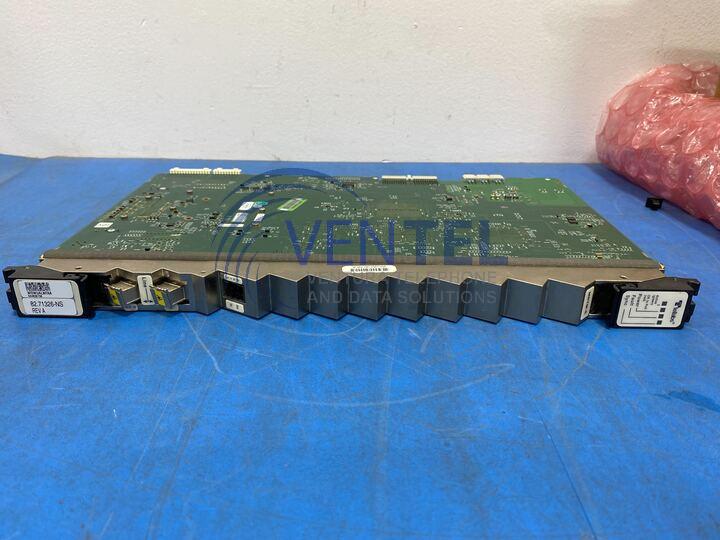

82.71326-NS-REV-A |
WOWUALN WOWUALNFAA | 2.5G MLTRT TRSPDR PRNT |
|
82.71423M-R5-REV-C |
WOWUAUL WOWUAULFAD | 40G TRANSPONDER MUX MODULE |
|
82.71423M-R5-REV-E |
WOWUA7G WOWUA7GFAB | 40G TRANSPONDER MUX MODULE |
|
82.71423M-R5-REV-B |
WOWUAUL WOWUAULFAC | 40G TRANSPONDER MUX MODULE |
|
82.07100B-60-REV-E |
WMMVF00 WMMVF00BRE | 60 AMP PORT SHELF |
|
82.07100B-60-REV-D |
WMMVF00 WMMVF00BRD | 60 AMP PORT SHELF |
|
82.07100B-60-REV-F |
WMMVF00 WMMVF00BRF | 60 AMP PORT SHELF |
|
82.07100B-60-REV-C |
WMMVF00 WMMVF00BRC | 60 AMP PORT SHELF |
|
82.07100B-60-REV-B |
WMMVF00 WMMVF00BRB | 60 AMP PORT SHELF |
|
82.07100B-60-REV-A |
WMMVF00 WMMVF00BRA | 60 AMP PORT SHELF |
|
82.07100B-60-REV-G |
WMMVF00 WMMVF00BRG | 60 AMP PORT SHELF |
|
|
82.07100B-60-REV-B |
WOM1100 WOM1100LRA | 60 AMP PORT SHELF (=453765 WMMVF00BRB BXD) |
|
|
82.07100B-60-REV-C |
WOM1100 WOM1100LRB | 60 AMP PORT SHELF (=453847 WMMVF00BRC IBL) |
|
|
|
70 KM DCM | |
|
81.71188-ER-R5-REV-A ERAM-E88 |
WOGUAK2 WOGUAK2SAA | 88 CHANNEL ER INPUT AMPLIFIER MODULE |
|
81.71M-OADM8SER-R5-REV-A 81.71M-OADM8SER-R5 |
WMOAAMP WMOAAMPAAA | ADD DROP OPTICAL MODULE |
|
81.71000C-REV-A |
WMPQARN WMPQARNEAA | BFM; BLANK FILLER MODULE |
|
|
81.71M-HGTMS-R6 |
WOOMAW7 WOOMAW7MAA | CORIANT TRANSPONDER CARD 100G SINGLE SLOT |
|
81.071DCM-SHLF-REV-B |
WMMHZ00 WMMHZ00BRB | DCM SHELF |
|

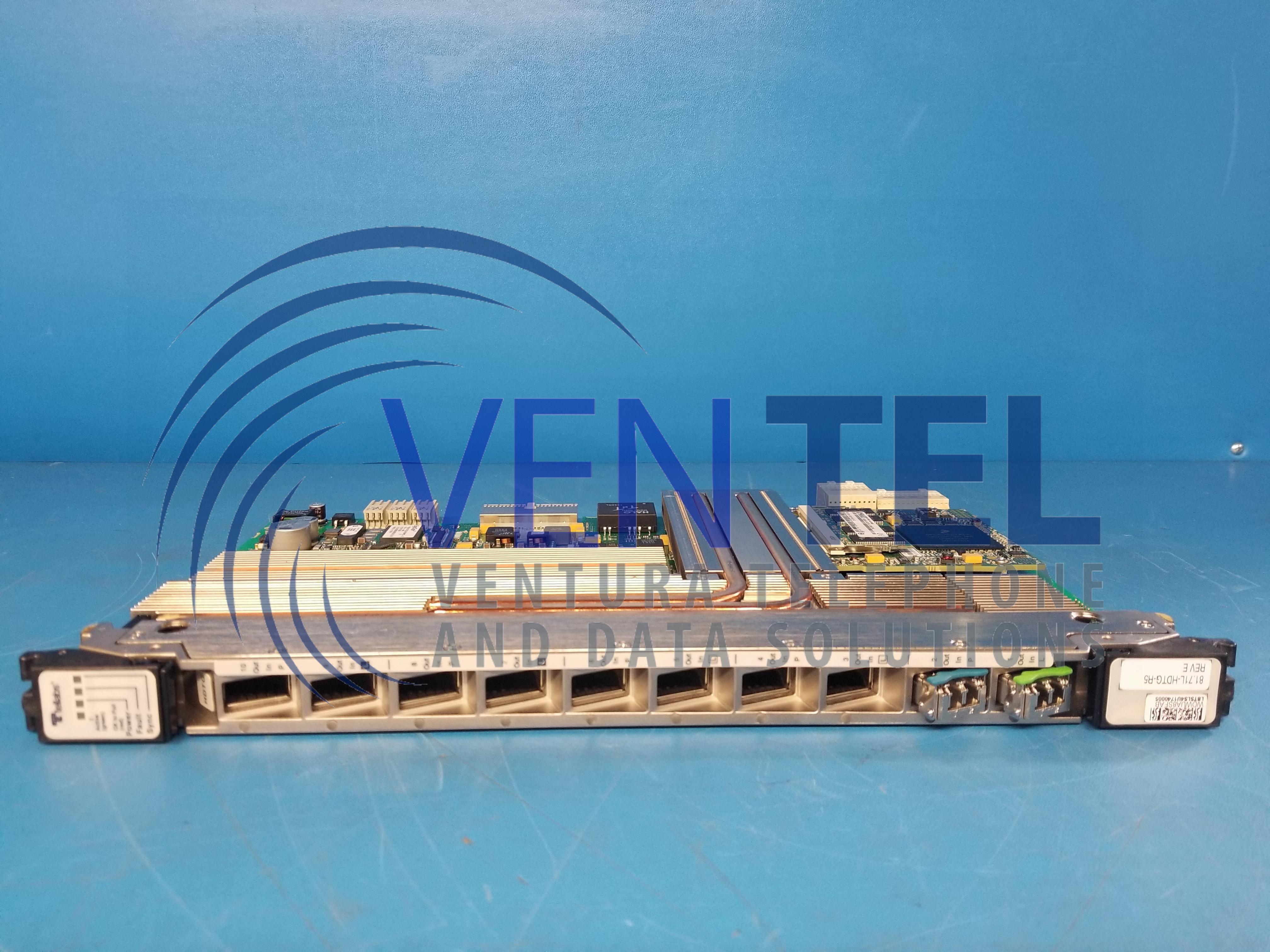

81.71L-HDTG-R5-REV-E |
WOWUA8S WOWUA8SFAB | HIGH DENS TRANSPONDER PRNCD |
|
81.71L-HDTG2-R6-REV-A |
WOWUBAV WOWUBAVFAA | HIGH DENS TRANSPONDER PRNCD |
|
81.71L-HDTG-R5-REV-D |
WOWUA8S WOWUA8SFAA | HIGH DENS TRANSPONDER PRNCD |
|
81.71L-HDTG-R5-REV-A |
WOWUA1Z WOWUA1ZFAA | HIGH DENS TRANSPONDER PRNCD |
|
81.71424-NX-R5 |
WOWUAYT WOWUAYTFAA | HIGH DENSITY TRANSPONDER PRINT CARD |
|
81.71424-NX-R5-REV-B 81.71424-NX-R5 |
WOWUAYT WOWUAYTFAB | HIGH DENSITY TRANSPONDER PRINT CARD |
|
81.71188-IR-R5 LIAM-E88 |
WOGUAJ0 WOGUAJ0SAA | LINE INPUT IR AMPLIFIER MODULE |
|
81.71188-LR-R5 LRAM-E88 |
WOGUAJ1 WOGUAJ1SAA | LRAM |
|
81.71188-LR-R5-REV-B LRAM-E88 |
WOGUAJ1 WOGUAJ1SAB | LRH AMPLIFIER MODULE |
|
81.X111GSR1131S-REV-A |
WOTRALK WOTRALKAAA | MULTIRATE XFP TRANSCEIVER GBIC |
|
81.71M-OSM20-R6-REV-B |
WOCUA1X WOCUA1XSAA | NANO OSM 20 OTN 20G SWITCHING MODULE |
|
81.71M-OSM20-R6-REV-A |
WOCUAX5 WOCUAX5SAA | NANO OSM 20 OTN 20G SWITCHING MODULE |
|
82.SOC48LR2151S-REV-A |
WMOTCYU WMOTCYUCAA | OC 48 1550NM SM SFP |
|
81.SOC48LR2151S FTLF1621P1BCL-T1 |
WMOTB2U WMOTB2UCAA | OC 48 1550NM SM SFP |
|

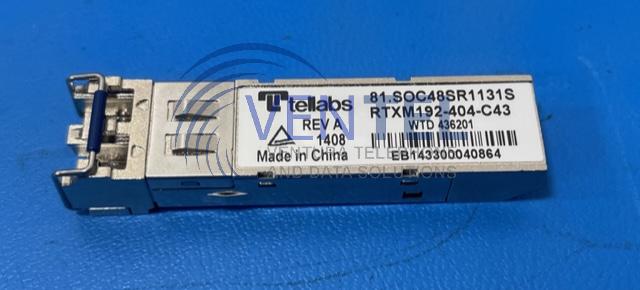

81.SOC48SR1131S-REV-A |
WMOTB2T WMOTB2TCAA | OC 48 2.5G MULTI RATE SR 1310NM SM SFP 2.5GBASE DU |
|

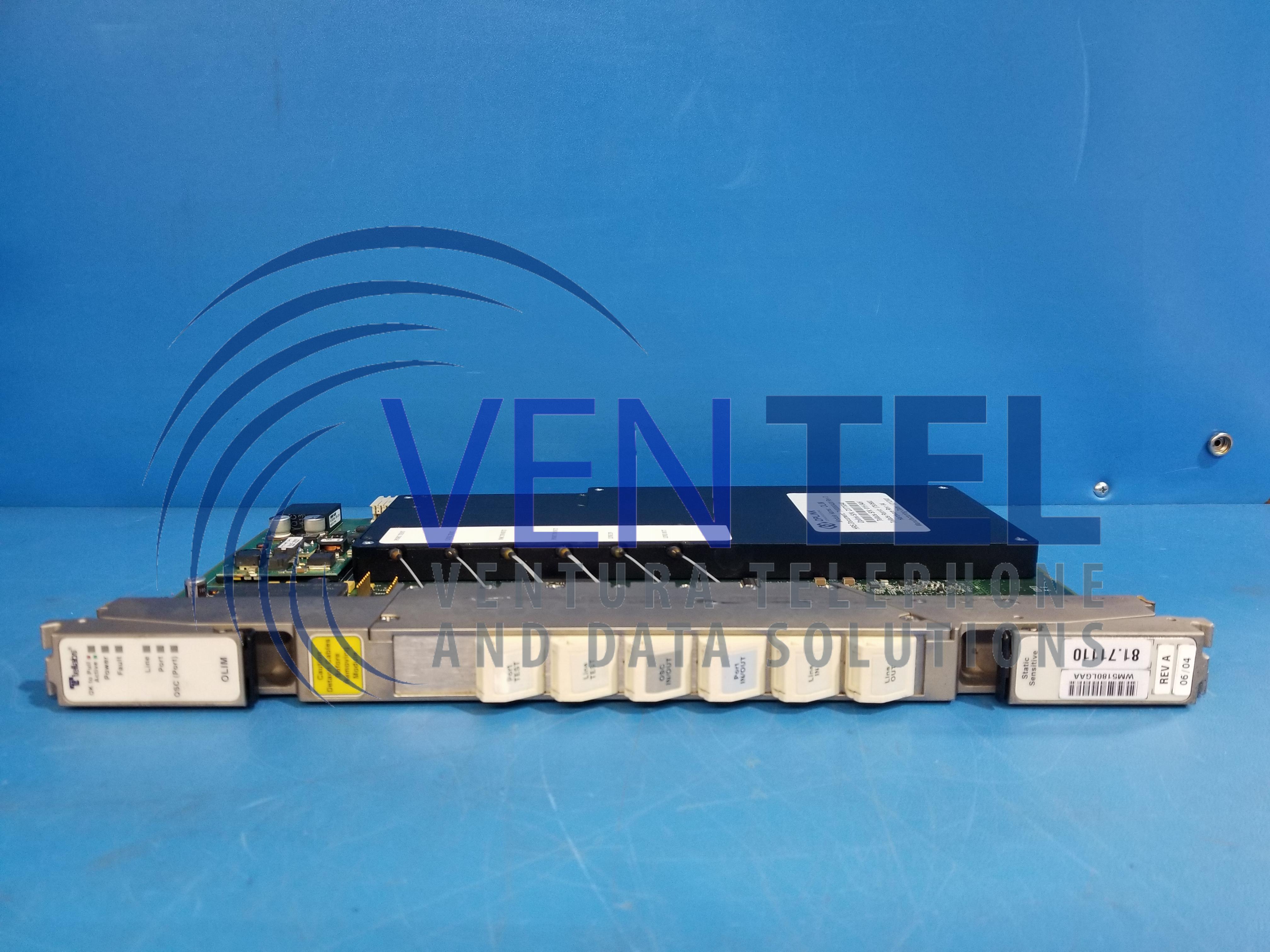

81.71110-REV-A |
WM5I80L WM5I80LGAA | OLIM |
