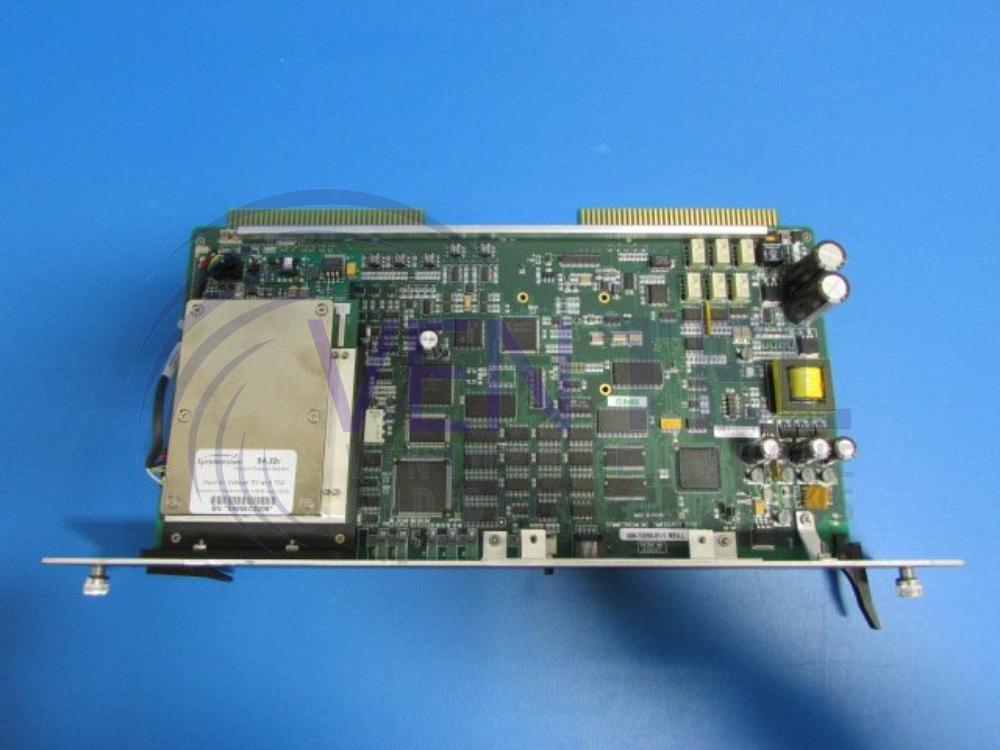

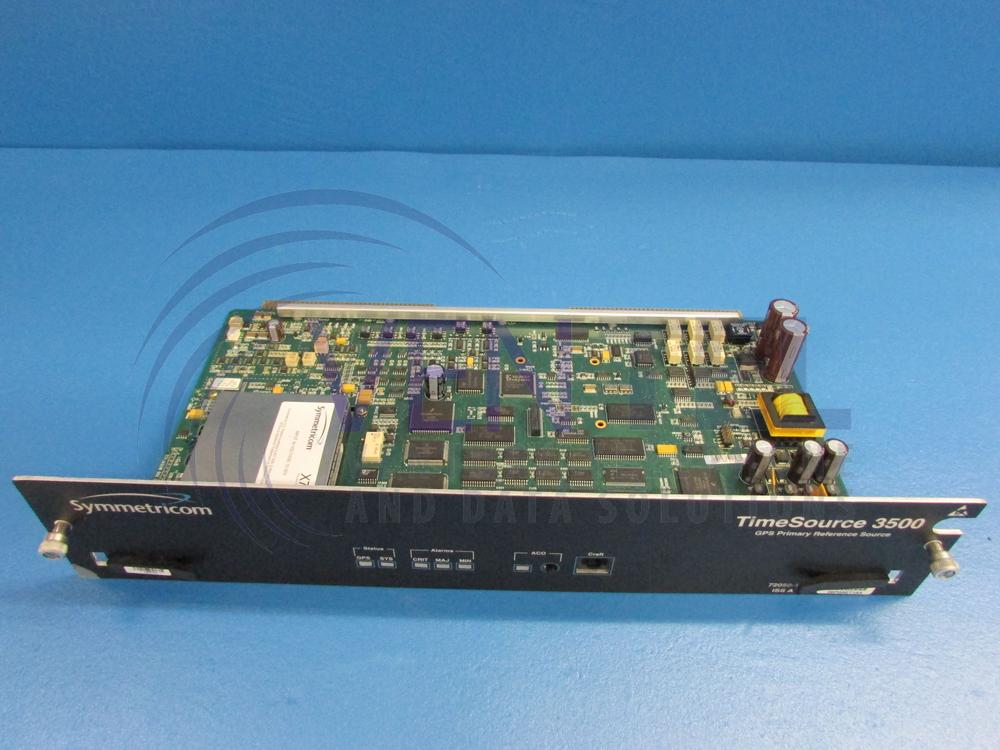

TimeSource 3500 is a stand-alone GPS Stratum 1 PRS (Primary Reference Source) Timing System for GPS hostile environments that meets GR 2830 network PRS performance requirements. Stratum 1 performance is achieved using advanced BesTime® technology (a single-satellite locking GPS receiver subsystem) and Rubidium local oscillator. Symmetricom was acquired by Microsemi in 2013.
Users Guide Data Sheet
| Part | HECI | Description | |
|---|---|---|---|
 |
012-00013-03 012-00013-01 112-00013-01 | D0PQAFC D0PQAFC1AB | 6 FOOT WALL ANTENNA |
 |
990-72010-72 | KIT W/ 090 72010 71 IF ANTENNA, 093 00001 01 CABLE BRACKET KIT, 093 72010 71 HARDWARE KIT | |
 |
990-72050-97 | KIT W/ MECHANICAL WINDOW ANTENNA, IF CONVERTER AND CHASSIS | |
 |
990-72050-96 | ROOFTOP ANTENNA KIT | |
 |
090-72010-71-REV-A 990-72010-VT | D0MYAAJ D0MYAAJBAA | ROOFTOP IF ANTENNA (=179903 D0PQAFG1AA OTH) |
 |
090-72050-06 TIMESOURCE-3500 | D0C1XXS D0C1XXSAAA | ST1 CLOCK FOR 10 E1/T1 OUTPUT LINES |
 |
090-72050-02-REV-C TIMESOURCE-3500 72050-02 | D0C1DFR D0C1DFRAAA | ST1 CLOCK FOR 10 T1 LINES |
 |
090-72050-02-REV-B TIMESOURCE-3500 72050-02 | D0C1DFK D0C1DFKAAA | ST1 CLOCK FOR 10 T1 LINES |
 |
090-72050-07 TIMESOURCE-3500 | D0C1X30 D0C1X30AAA | ST1 CLOCK FOR 10 T1/CCK OUTPUT LINES |
 |
094-72050-41 090-72050-01-REV-C TIMESOURCE-3500 72050-01 | D0C1DER D0C1DERAAA | ST1 CLOCK FOR 2 T1 LINES |
 |

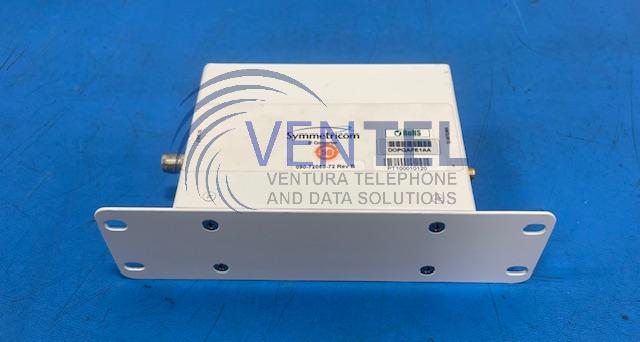

090-72050-72 | D0PQAFE D0PQAFE1AA | WINDOW ANTENNA, IF CONVERTER |
 |
090-72050-03-REV-B | D0C1DGK D0C1DGKAAA | 2T1/8CCK ST1 CLOCK |
 |
090-72050-03-REV-R | D0C1DGR D0C1DGRAAB | 2T1/8CCK ST1 CLOCK |
 |
090-72050-03-REV-V | D0C1DGR D0C1DGRAAC | 2T1/8CCK ST1 CLOCK |
 |
090-72050-03-REV-C | D0C1DGR D0C1DGRAAA | 2T1/8CCK ST1 CLOCK |
 |
012-00013-03-REV-C 012-00013-01 112-00013-01 | D0PQAFC D0PQAFC1AC | 6 FOOT WALL ANTENNA |
 |

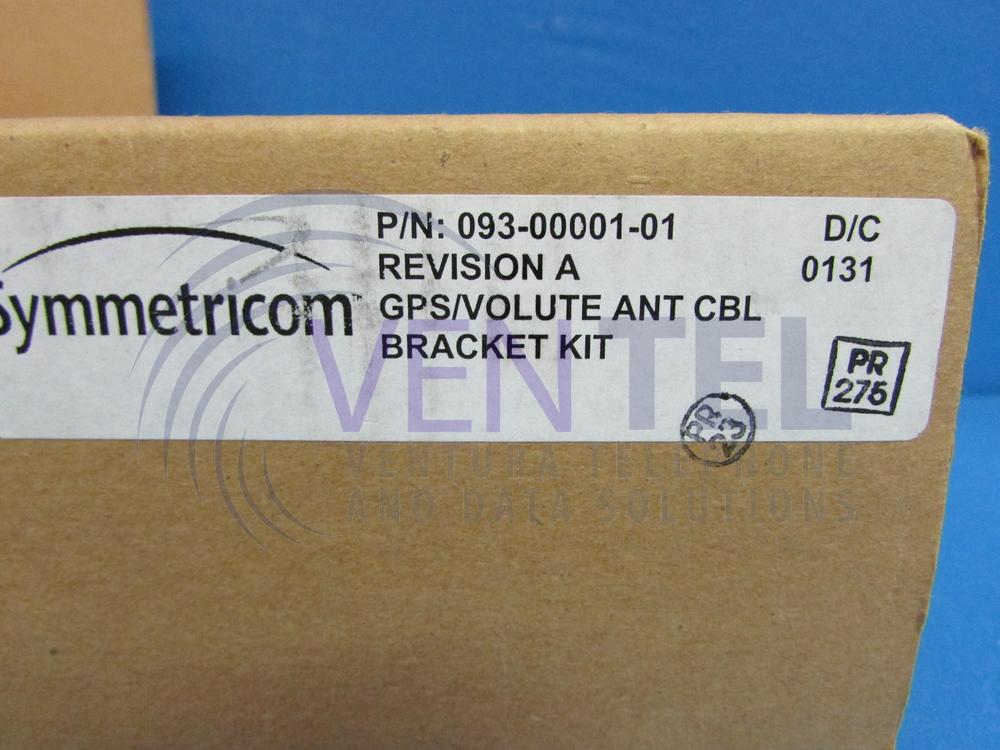

093-00001-01 | ANTENNA CABLE BRACKET | |
 |

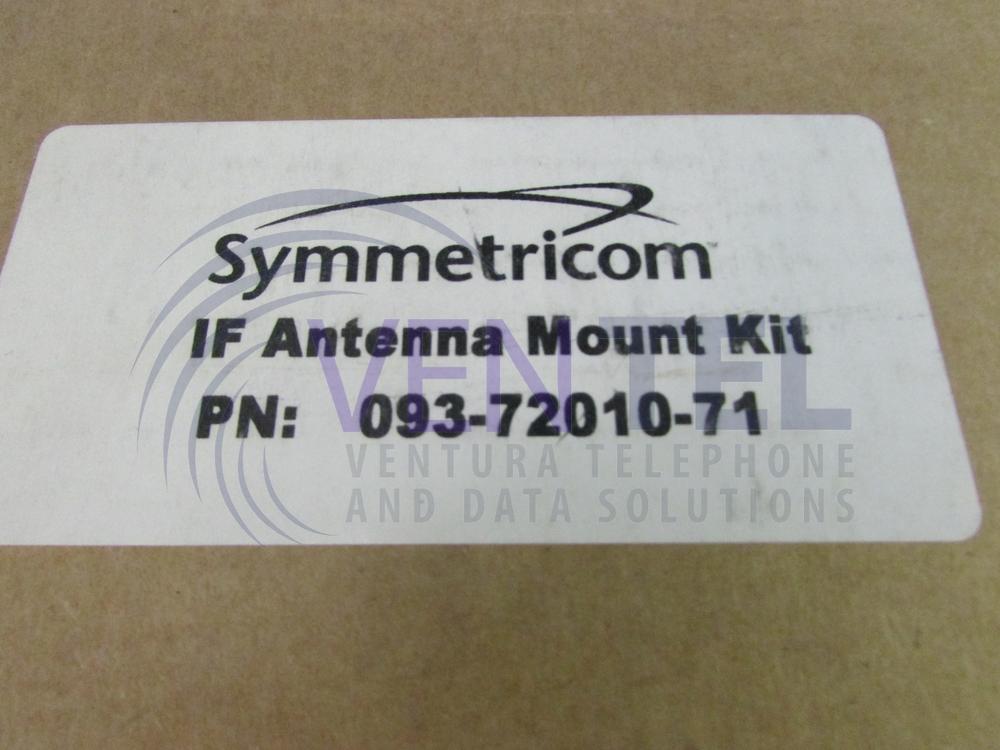

093-72010-71 | ANTENNA MOUNTING HARDWARE KIT | |
 |
092-72050-06 992-72050-06 | CD | |
 |
089-72050-01 | CHASSIS | |
 |

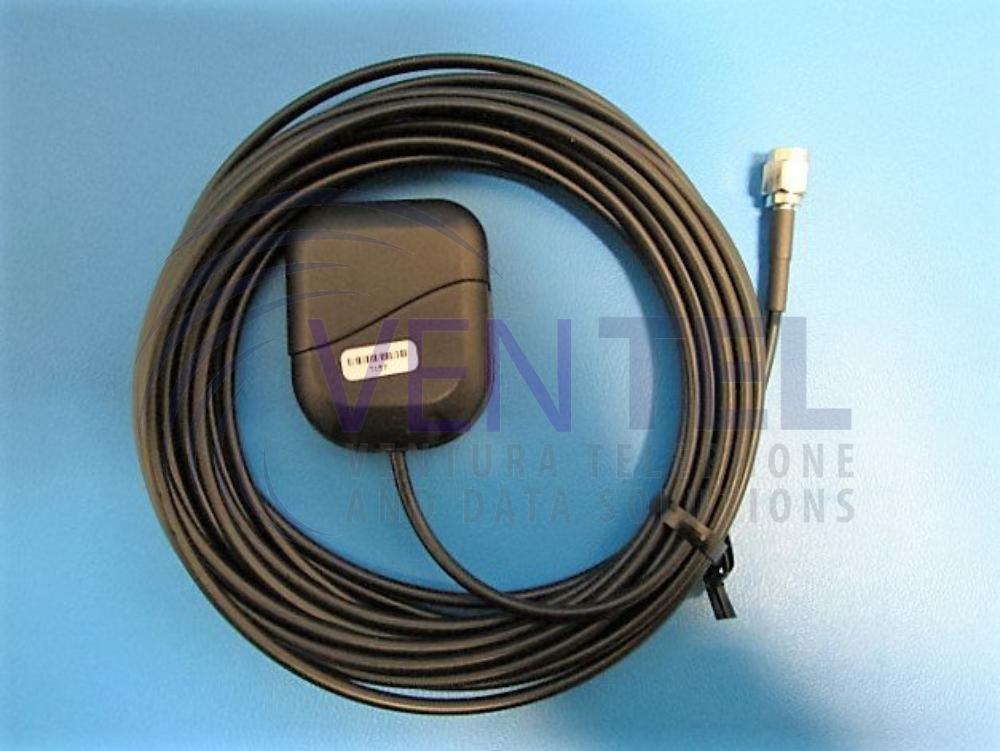

012-00013-01 112-00013-01 | D0PQAE2 D0PQAE21AC | GPS ANTENNA; WALL ANTENNA |
 |
997-72050-01 | GPS MANUAL | |
 |
090-72050-97-REV-B | D0PQAE1 D0PQAE11AA | IF CONVERTER |
 |
090-72050-70 | D0PQAEZ D0PQAEZ1AA | IF CONVERTER |
 |
090-72050-97 | D0PQAE0 D0PQAE01AA | IF CONVERTER |
|
|
090-72050-97 | D0MYAAC D0MYAACBAA | IF CONVERTER (=118805 D0PQAE01AA OTH) |
|
|

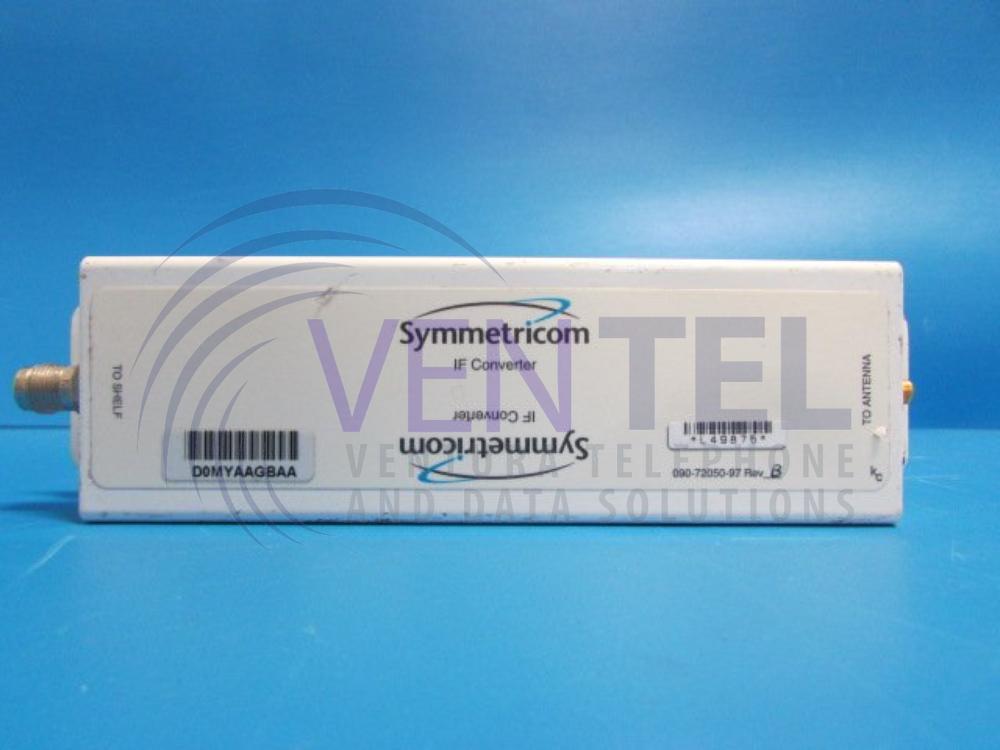

090-72050-97-REV-B | D0MYAAG D0MYAAGBAA | IF CONVERTER (=118806 D0PQAE11AA OTH) |
 |

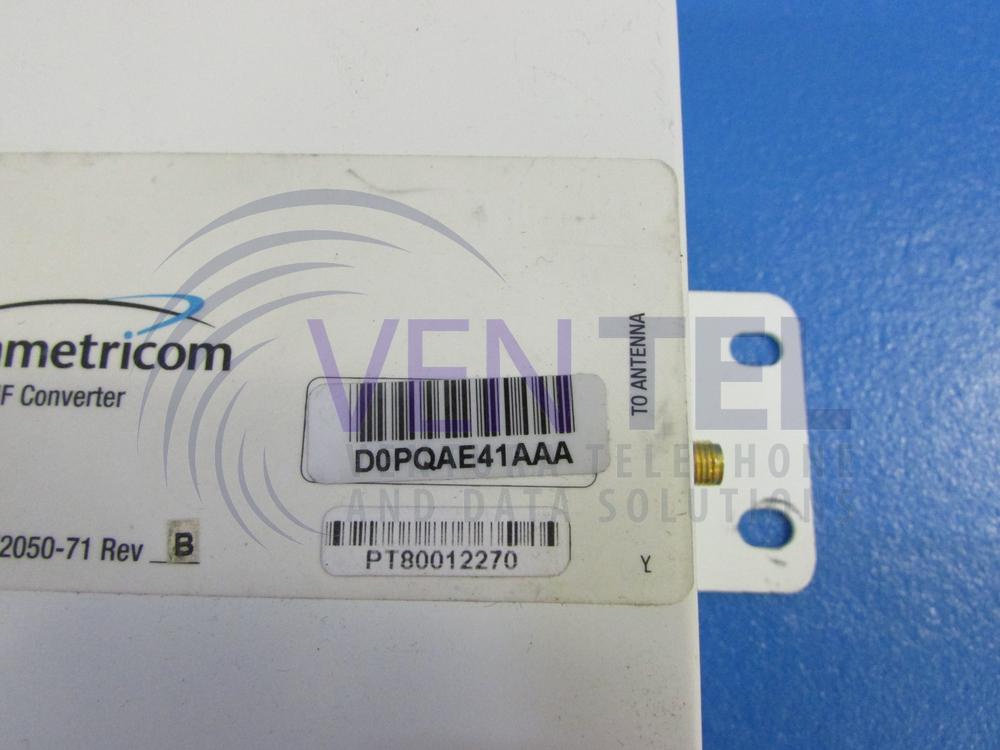

090-72050-71-REV-D | D0PQAE4 D0PQAE41AB | IF CONVERTER FOR WINDOW ANTENNAS |
 |
090-72050-71-REV-A | D0PQAE4 D0PQAE41AA | IF CONVERTER FOR WINDOW ANTENNAS |
 |
990-72050-98 | KIT W/ ANTENNA, IF CONVERTER & SELF ADHESIVE WINDOW INSTALLATION KIT (10 FT RG316 CABLE & TIES) | |
 |
143-00018-01 043-00018-01 P8AX09TNCWFF | XCEQAA1 XCEQAA1AAA | LIGHTNING SUPPRESSOR / SURGE PROTECTOR W/ TNC CONNECTOR |
 |
070-72010-76 | MAST | |
 |
090-72050-90 | D0PQAFJ D0PQAFJ1AA | MECHANICAL WINDOW ANTENNA |
|
|
090-72050-90 | D0MYAAD D0MYAADBAA | MECHANICAL WINDOW ANTENNA W/ CABLE & SMA CONNECTOR |
 |
992-72050-09 | MEDIA CD | |
 |
090-72010-97-REV-D | D0PQAFK D0PQAFK1AA | NAVSYMM ROOFTOP GPS IF ANTENNA |
|
|
090-72010-97-REV-D | D0MYAAH D0MYAAHBAA | NAVSYMM ROOFTOP GPS IF ANTENNA |
 |
090-72010-97 | D0PQAFL D0PQAFL1AA | NAVSYMM ROOFTOP GPS IF ANTENNA |
|
|
090-72010-97 | D0MYAAB D0MYAABBAA | NAVSYMM ROOFTOP GPS IF ANTENNA |
 |
990-72010-VT | REPLACEMENT ANTENNA FOR 090 72010 71 W/ MOUNTING HARDWARE | |
 |
090-72010-71-REV-C | D0PQAFG D0PQAFG1AB | ROOFTOP IF ANTENNA |
|
|

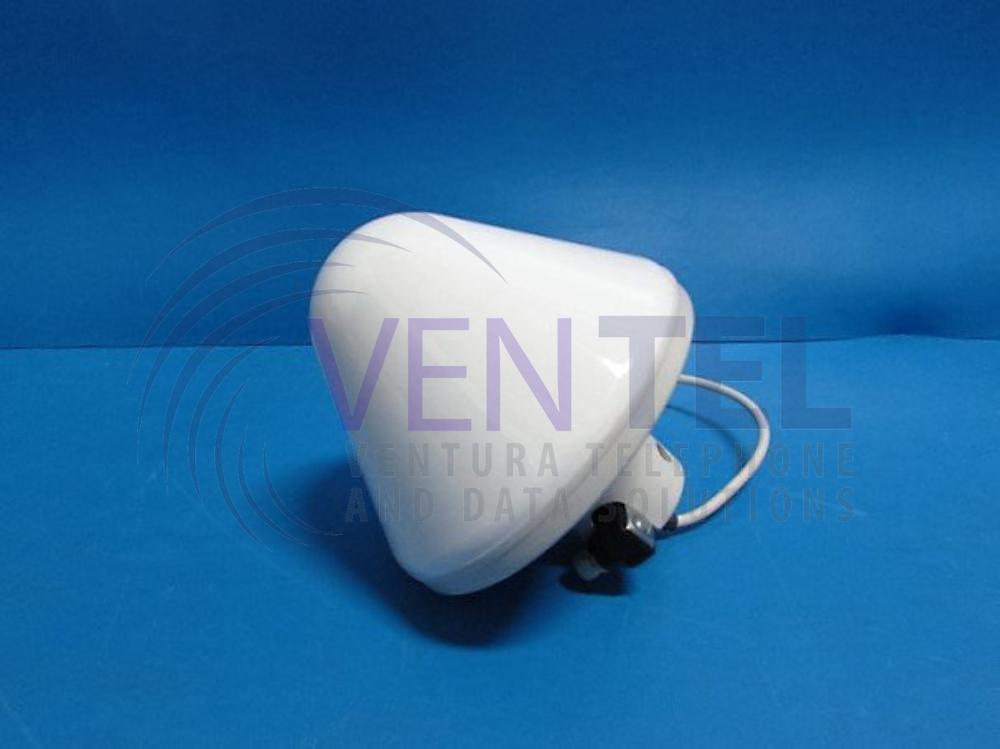

090-72010-71-REV-A | D0PQAFG D0PQAFG1AA | ROOFTOP IF ANTENNA |
|
|
090-72010-71-REV-C | D0MYAAJ D0MYAAJBAB | ROOFTOP IF ANTENNA (=179904 D0PQAFG1AB OTH) |
 |
090-72010-87 | D0PQAFH D0PQAFH1AA | SELF ADHESIVE WINDOW ANTENNA |
|
|
090-72010-87 | D0MYAAE D0MYAAEBAA | SELF ADHESIVE WINDOW ANTENNA |
 |
043-00018-02 | XCEQAA2 XCEQAA2AAB | SMA (F) TO SMA (F) SURGE PROTECTOR |
 |
143-00018-02 | XCEQAA2 XCEQAA2AAA | SMA (F) TO SMA (F) SURGE PROTECTOR |
 |

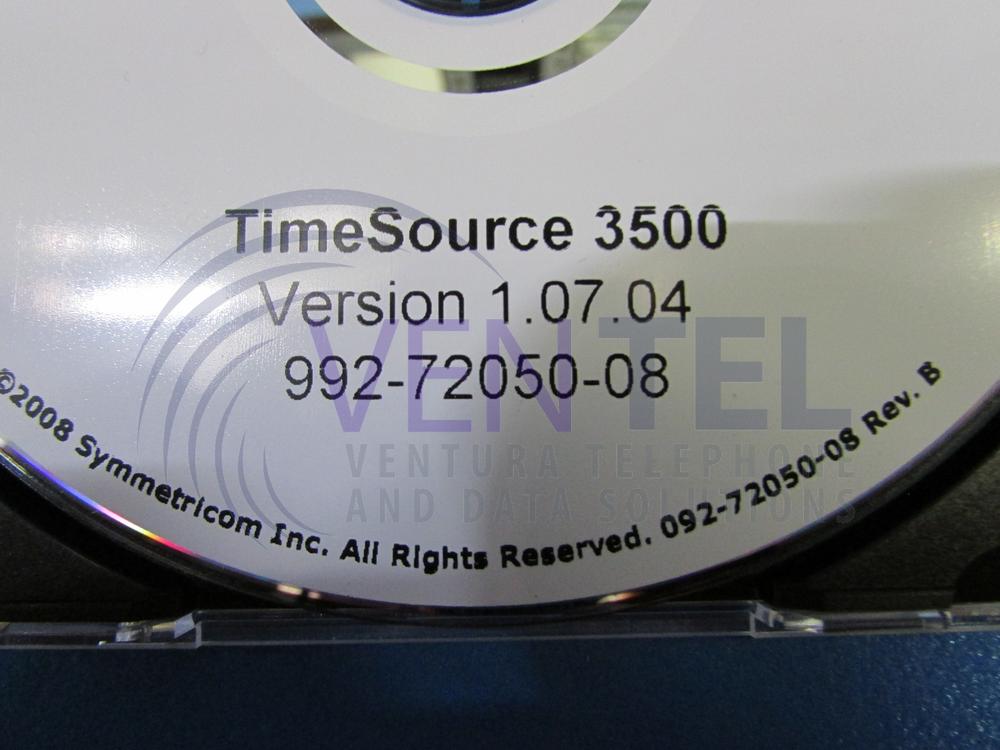

992-72050-08 | SOFTWARE | |
 |
090-72050-05-REV-C 090-72050-05 | D0C1DNR D0C1DNRAAA | ST1 CLOCK |
 |
090-72050-05-REV-B 090-72050-05 | D0C1DNK D0C1DNKAAA | ST1 CLOCK |
