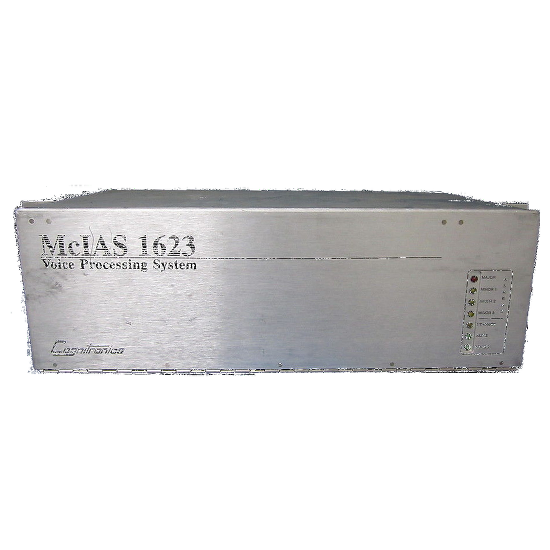

The McIAS 1623/IP, the Multichannel Intelligent Announcement System, provides a variety of network voice announcement functions. The McIAS 16xx product family has been primarily used by Incumbent Local Exchange Carriers (ILECs) and Competitive Local Exchange Carriers (CLECs) to provide voice announcements such as selective call forwarding and caller originator trace. The 16xx was produced in two versions: 1) a lower cost configuration, as the 1607/68 (1 T-1 span capacity) and 1610/68 (3 T-1 span capacity), and 2) a UNIX(R)-based platform which utilizes many of the same components as the /68 series and is known as McIAS 16xx/IP. ("IP" designates an Intelligent Peripheral, indicating the ability to serve as a voice peripheral to any manufacturer's switch and delivering multiple application capability.)

The McIAS 16xx/IP was available as a 1607/IP, a 1610/IP, and a 1623/IP. Features include an open architecture, scalable processing power and disk drives, and centralized administration. Application examples include number change with call completion, automated attendant, voice mail and time and temperature announcements.

Cognitronics Corp acquired ThinkEngine in 2005, and subsequently traded under the name Think Engine Networks before selling the McIAS announcement server and CX Network Exchange media server product lines to Telesoft Technologies in 2009.

McIAS 16xx System Manual
    PartHECIDescription



    Rated 5/5 based on 1 review(s)
    VSPQA73 VSPQA736AAAIR FILTERS (PACKAGE OF 20)



    Rated 5/5 based on 1 review(s)

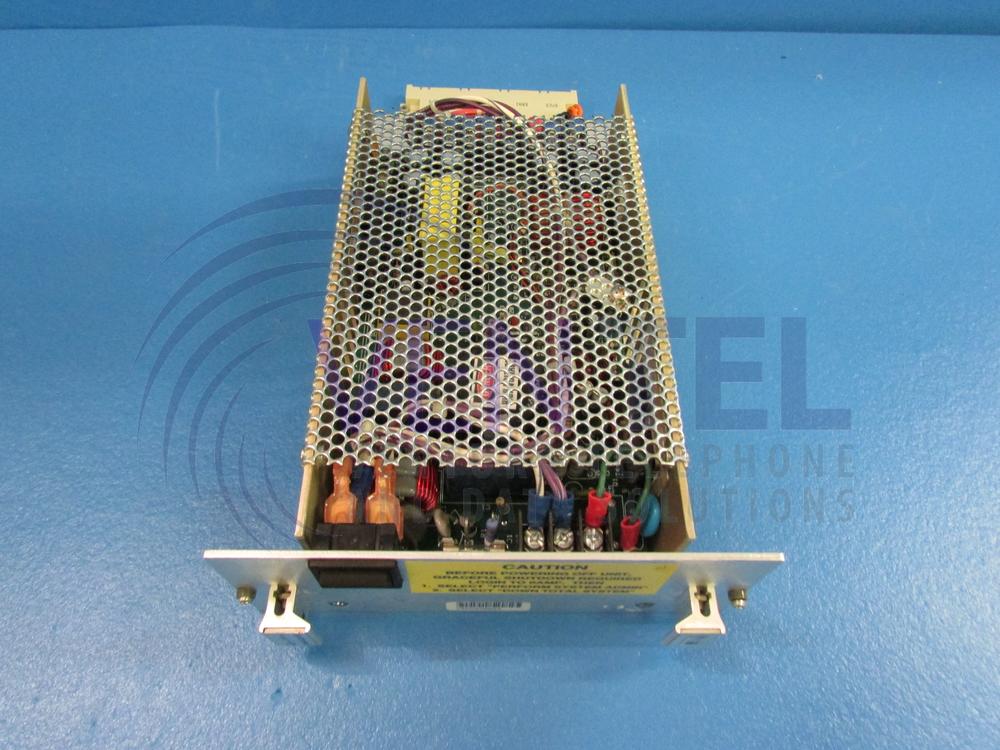

    VSPUA5B VSPUA5BBAAPOWER SUPPLY

    Rated 5/5 based on 1 review(s)

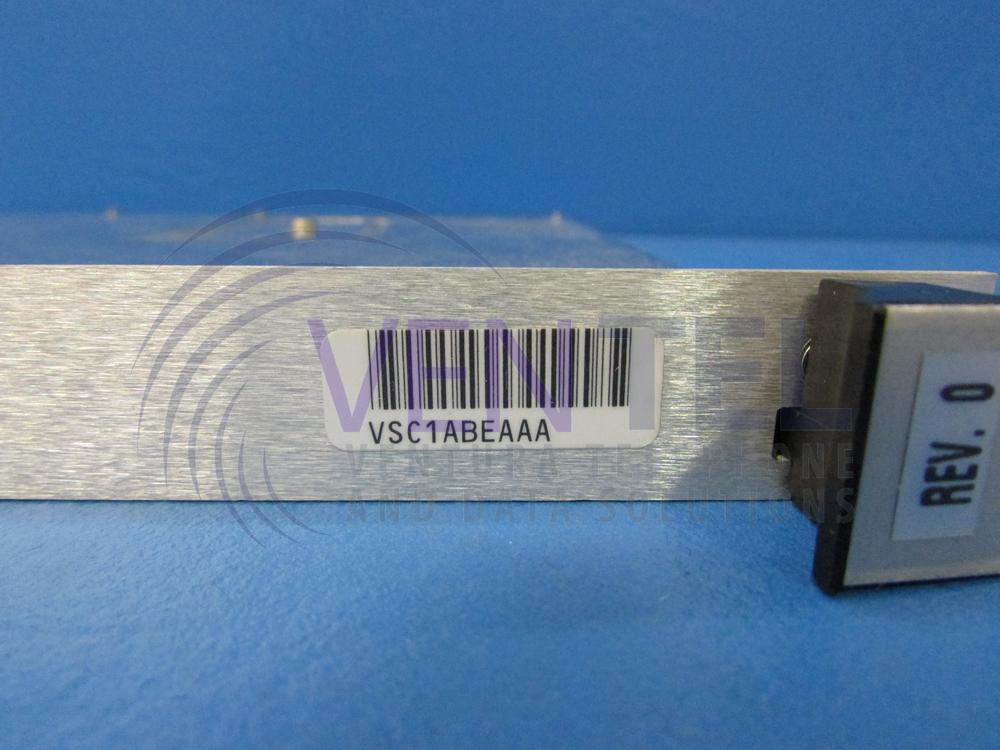

    VSC1ABE VSC1ABEAAASBC W/ 64MB RAM (197)

    Rated 5/5 based on 1 review(s)
    VSIUR5G VSIUR5GBAA24 T1 VOICE SERVER BOARD ASSEMBLY


    Rated 5/5 based on 1 review(s)
    30 T1 VOICE SERVER BOARD ASSEMBLY

    Rated 5/5 based on 1 review(s)
    64MB W/ 1 T1, 24 INCH MOUNTING BRACKETS

    Rated 5/5 based on 1 review(s)
    VSDSTUE VSDSTUECAA9GB HARD DISK DRIVE 1 (197)

    Rated 5/5 based on 1 review(s)
    VSDSTUF VSDSTUFCAA9GB HARD DISK DRIVE 2 (197)


    Rated 5/5 based on 1 review(s)
    VSC1BD0 VSC1BD0AAAALARM TRANSITION BOARD ASSEMBLY W/ LAN 10BASE2


    Rated 5/5 based on 1 review(s)
    VSC1BC0 VSC1BC0AAAALARM TRANSITION BOARD ASSEMBLY W/OUT LAN


    Rated 5/5 based on 1 review(s)

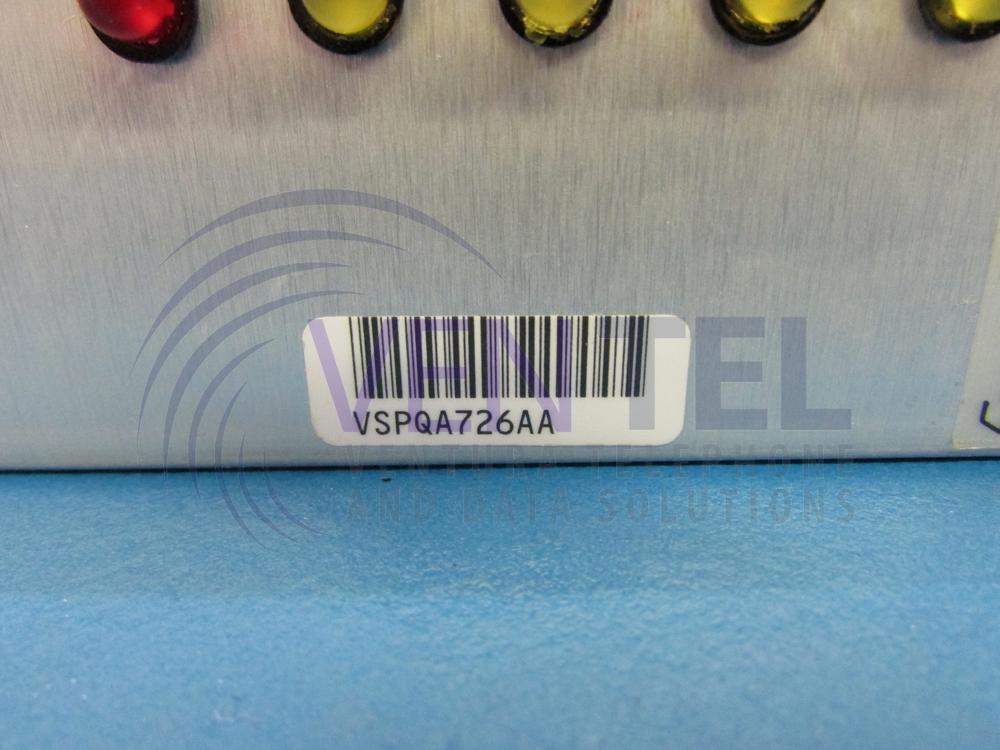

    VSPQA72 VSPQA726AAAN ASSEMBLY BOARD


    Rated 5/5 based on 1 review(s)
    VSDSPM0 VSDSPM0CAADRIVE MCIAS 1610 STANDARD REMOVABLE HARD SHUTTLE 1

    Rated 5/5 based on 1 review(s)
    VSC1CD0 VSC1CD0AAAETHERNET LAN (10BASE2) SYSTEM INTERCONNECT ASSEMBLY

    Rated 5/5 based on 1 review(s)
    VSPQA76 VSPQA766AALARGE HARD DISK DRIVE 1 (187)

    Rated 5/5 based on 1 review(s)
    VSDSTWE VSDSTWECAALARGE HARD DISK DRIVE 1 (197)

    Rated 5/5 based on 1 review(s)
    VSPQA77 VSPQA776AALARGE HARD DISK DRIVE 2 (187)

    Rated 5/5 based on 1 review(s)
    VSDSTWF VSDSTWFCAALARGE HARD DISK DRIVE 2 (197)



    Rated 5/5 based on 1 review(s)
    MANUAL/GUIDE (ALSO FOR EASM/IP)


    Rated 5/5 based on 1 review(s)
    VSC1BE0 VSC1BE0AAAMCIAS 1610 ALARM TRANSITION BOARD ASSEMBLY W/ LAN 10BASET

    Rated 5/5 based on 1 review(s)

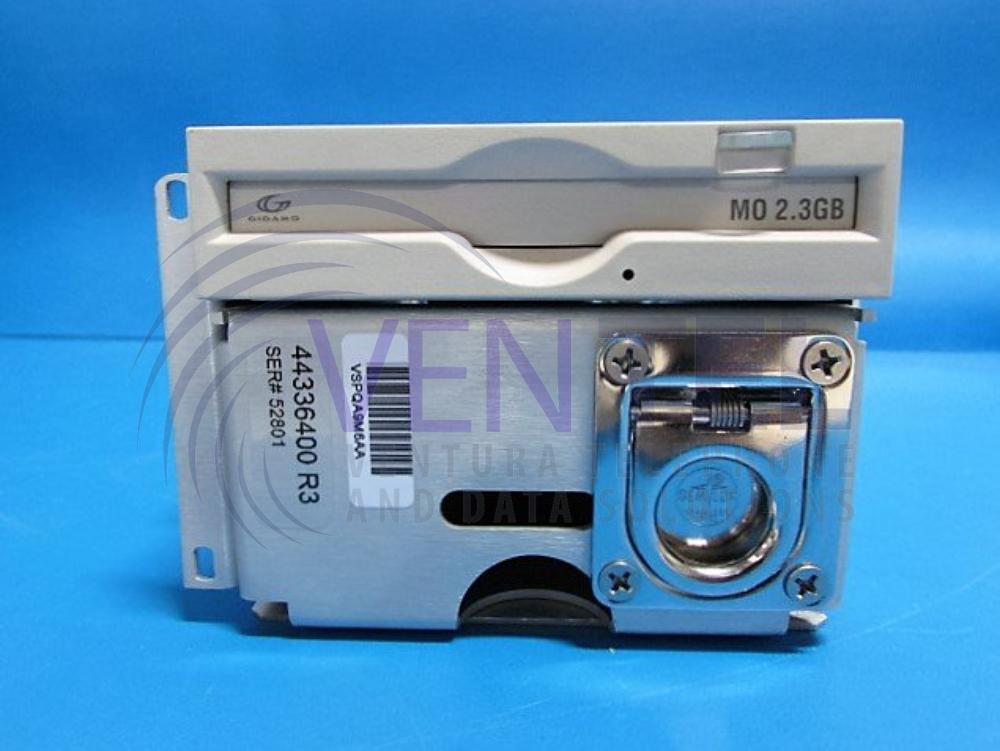

    VSPQA9M VSPQA9M6AAMCIAS 1610 STANDARD REMOVABLE HARD DRIVE SHUTTLE 2

    Rated 5/5 based on 1 review(s)
    VSC2KKG VSC2KKGBAAMCTI 24MR / MCTI 30MR T1/E1 INTERFACE VME LINE CARD

    Rated 5/5 based on 1 review(s)
    VSC2GJE VSC2GJEBAAMCTI 24MR T1 TRANSITION BOARD

    Rated 5/5 based on 1 review(s)
    MCTI 30MR E1 TRANSITION BOARD


    Rated 5/5 based on 1 review(s)

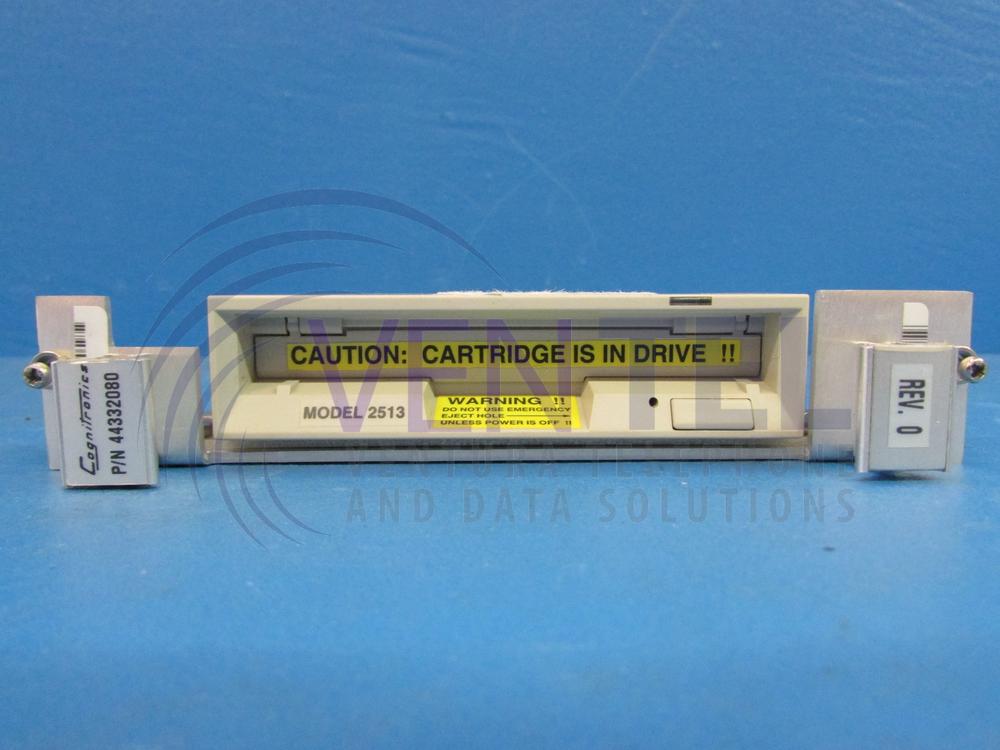

    VSDSMK0 VSDSMK0CAAREMOVABLE CARTRIDGE DISK DRIVE ASSEMBLY


    Rated 5/5 based on 1 review(s)
    VSC1AAA VSC1AAAAAARISC SBC W/ 32MB RAM (187)




    Rated 5/5 based on 1 review(s)
    VSC1ABA VSC1ABAAAARISC SBC W/ 64MB RAM (187)

    Rated 5/5 based on 1 review(s)
    VSC1AAE VSC1AAEAAASBC W/ 32MB RAM (197)

    Rated 5/5 based on 1 review(s)
    VSDSMK0 VSDSMK0CABSERIES 2000 REMOVABLE CARTRIDGE DISK DRIVE ASSEMBLY





    Rated 5/5 based on 1 review(s)
    VSPQA9P VSPQA9P6AASERIES 2000 REMOVABLE CARTRIDGE DISK DRIVE ASSEMBLY 2 W/ 40332100

    Rated 5/5 based on 1 review(s)
    VSDSWW0 VSDSWW0CAASHUTTLE DRIVE ASSEMBLY (197)


    Rated 5/5 based on 1 review(s)
    SPARE PARTS KIT W/ 10BASE T LAN ASSEMBLY, 64MB SBC AND STANDARD DRIVES



    Rated 5/5 based on 1 review(s)
    SPARE PARTS KITS W/ 32MB SBC, STANDARD DRIVES AND 10BASE T LAN ASSEMBLY



    Rated 5/5 based on 1 review(s)
    VSDSNL0 VSDSNL0CAASTANDARD HARD DISK DRIVE 1 (187)



    Rated 5/5 based on 1 review(s)

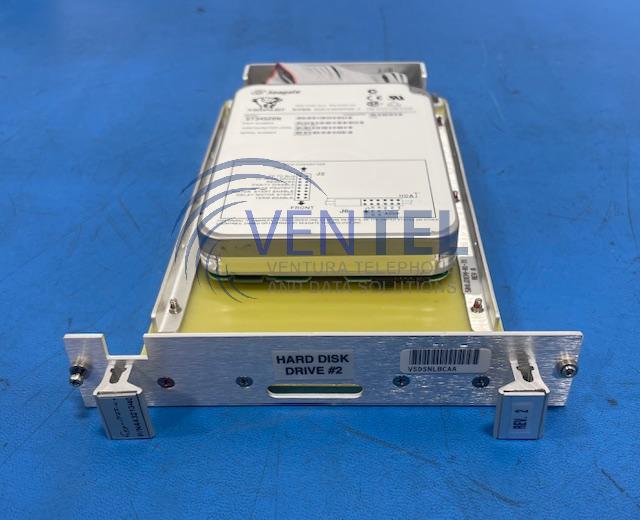

    VSDSNLB VSDSNLBCAASTANDARD HARD DISK DRIVE 2 (187)


    Rated 5/5 based on 1 review(s)
    VSMA370 VSMA370FRAVOICE PROCESSING SYSTEM CHASSIS
