The Alcatel 1603 SMX is a multi-service SONET network element that provides reliability and interoperability. This system helps reduce network operating costs with easy in-service, in-shelf upgrades, and features an architecture optimized for network security and reliability complemented by binary database-backup capability that allows rapid backup and recovery.
Alcatel 1603SMX Data Sheet Alcatel 1603SMX Maintenance and Trouble Clearing Alcatel 1603 12 SM Maintenance and Trouble Clearing
| Part | HECI | Description | |
|---|---|---|---|
 |

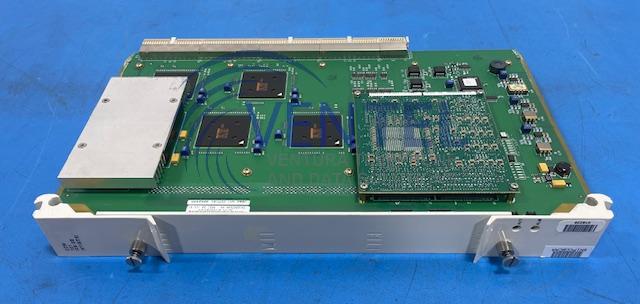

3AL00424AA02 CCM101 | SN1PCCB SN1PCCBCAA | CCM |
 |

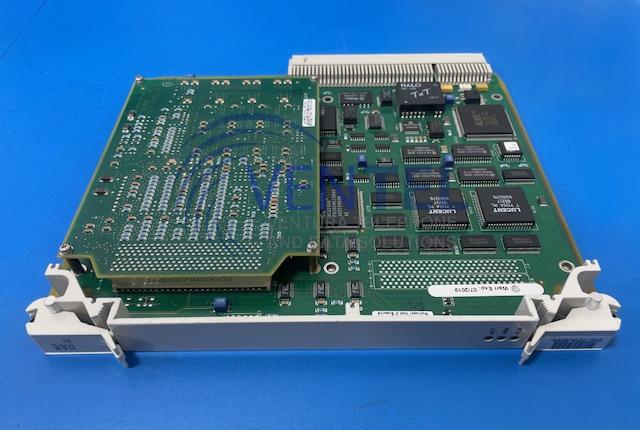

3AL00378AB01 NEP-402 | SNC720U SNC720UBAA | NETWORK ELEMENT PROCESSOR |
 |
3EM02143AA01 HIF-G01 | SN55DVE SN55DVEBAA | OC48 LR 1310NM I/F MODULE, FC CONNECTOR |
 |
3AL00338AA02 HIF-F01 | SOUIA7R SOUIA7RXAA | OC48 LR 1310NM TRU I/F, FC CONNECTOR |
 |

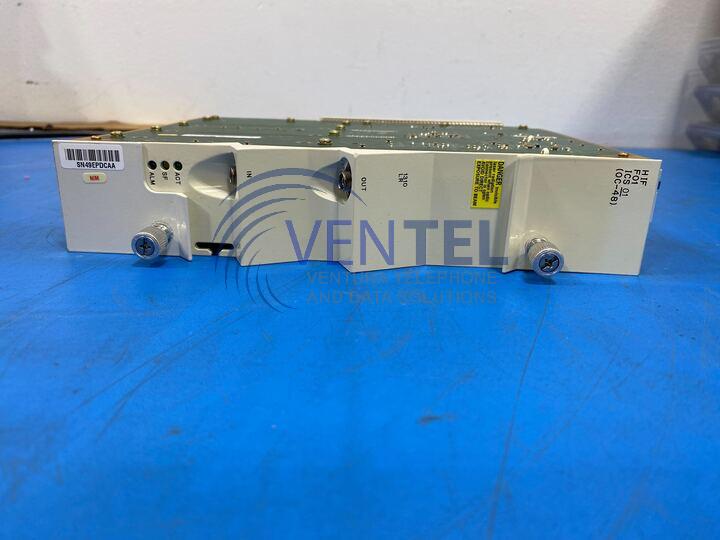

3AL00338AA01 HIF-F01 | SN49EPD SN49EPDCAA | OC48 LR 1310NM TRU I/F, FC CONNECTOR |
 |
602392-536-001 | 48V 10AMP FUSE ASSEMBLY | |
 |
625600-000-001 | SNM1AA0 SNM1AA01MA | ADM150 SHELF |
 |
3AL00436AA01 | BACKPLANE CARD 1603SM | |
 |
3AL00444AA01 3AL00443ACAA | BACKPLANE CARD 1603SM | |
 |
3AL00424AA01 CCM101 | SNP6VZ0 SNP6VZ0BAA | CCM |
 |
3EM03555AAAB | CD ROM APPLICATIONS SOFTWARE KIT 1603SM | |
 |
3AL02487AHAB | CD ROM APPLICATIONS SOFTWARE KIT 1603SM | |
 |
625211-000-003 CLK-103 | SNPQACB SNPQACB1AA | CLOCK MODULE |
 |
625211-000-001 CLK-101 | SNPQAB2 SNPQAB21AA | CLOCK MODULE |
 |
625211-000-002 CLK-102 | SNPQAH2 SNPQAH21AA | CLOCK MODULE |
 |
625656-000-002 COA402 | SNPQBK5 SNPQBK51AA | COA |
 |
625656-000-001 COA401 | SNPQBK4 SNPQBK41AA | COA |
 |
3AL00280AC01 | SNPQBK6 SNPQBK61AA | COA403 CRAFT/OW/A UNIT |
 |
3AL00280AD01 | SNPQBK7 SNPQBK71AA | COA404 CRAFT/OW/A UNIT |
 |
3AL00280AE01 | SNPQBK8 SNPQBK81AA | COA405 CRAFT/OW/A UNIT |
 |
3AL00280AF01 | SNPQBK9 SNPQBK91AA | COA406 CRAFT/OW/A UNIT |
 |
3AL00380AF01 COA-606 | SNCSBFB SNCSBFBAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AH01 COA-608 | SNCSBFD SNCSBFDAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AE01 COA-605 | SNCSBEB SNCSBEBAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AK01 COA-610 | SNCSBBE SNCSBBEAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AJ01 COA-609 SNCS8AEAAA | SNCSBAE SNCSBAEAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AA01 COA-601 | SNCSBE0 SNCSBE0AAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AB01 COA-602 | SNCSBF0 SNCSBF0AAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AC01 COA-603 | SNCSBEA SNCSBEAAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AD01 COA-604 | SNCSBFA SNCSBFAAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00380AG01 COA-607 | SNCSBED SNCSBEDAAA | CRAFT ORDERWIRE/ALARM UNIT |
 |
3AL00324AD01 COA-504 | SNI2UR0 SNI2UR0DAA | CRAFT OW & ALARM UNIT |
 |
3AL00324AC01 COA-503 | SNI2UP0 SNI2UP0DAA | CRAFT OW & ALARM UNIT |
 |
3AL00324AB01 COA-502 | SNI2UN0 SNI2UN0DAA | CRAFT OW & ALARM UNIT |
 |
3AL00324AE01 COA-505 | SNI2US0 SNI2US0DAA | CRAFT OW & ALARM UNIT |
 |

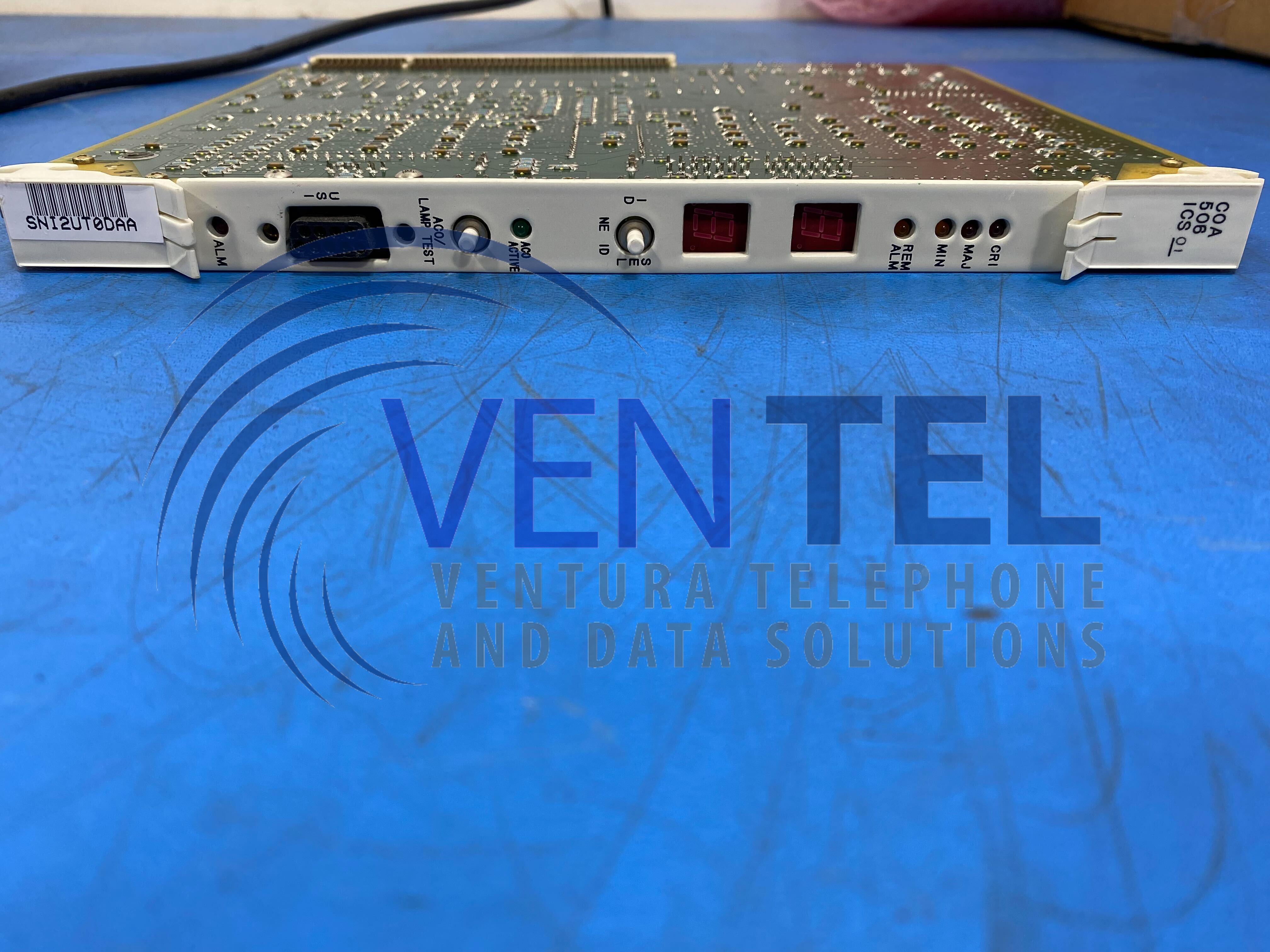

3AL00324AF01 COA-506 | SNI2UT0 SNI2UT0DAA | CRAFT OW & ALARM UNIT |
 |
3EM03906AB01 | SOUCAH5 SOUCAH5UAA | CROSS CONNECT MATRIX |
 |
| DELETED CCM101 CARD | |
 |
3EM03555AAAA | DISKETTE APPLICATIONS SOFTWARE KIT 1603SM | |
 |
3AL02487AHAA | DISKETTE APPLICATIONS SOFTWARE KIT 1603SM | |
 |
625643-000-001 MTA101 | SNIUFY0 SNIUFY01AA | DS1 MTAU |
 |
3AL00114AB01 3AL00114ABAF | SNCDTX0 SNCDTX0CAA | DS1 VTG MODULE |
 |
602393-536-001 | SNMYABV SNMYABVBAA | DS1WW PANEL |
 |
3AL00452AA02 LIF-B01 | SNP7ZXZ SNP7ZXZBAA | DS3 ATM I/O UNIT |
 |
3AL00452AA01 LIF-B01 | SNP7ZX0 SNP7ZX0BAA | DS3 ATM I/O UNIT |
 |
625615-000-001 LDR301 | SNIUVN0 SNIUVN01AA | DS3 LDR |
 |
3AL00190AB01 LIF-302 | SNIUT0A SNIUT0A1AA | DS3 LS INTERFACE UNIT |
 |
625643-000-002 MTA102 | SNIU3Y0 SNIU3Y01AA | DS3 MTAU |
 |
3EM02212AA03 | SNM9730 SNM9730ARA | EXPANSION SHELF |
 |
3EM02212AA02 | SNM9630 SNM9630ARA | EXPANSION SHELF |
